NEEBRC 2206 2212 2306 2814 2826 3536 3542 4250 Outrunner Brushless Motor for RC Plane Fixed-wing FPV Racing Drone Quadcopter

NEEBRC 2206 2212 2306 2814 2826 3536 3542 4250 Outrunner Brushless Motor for RC Plane Fixed-wing FPV Racing Drone Quadcopter



D2212:

D3536:

D2814:

C3542:

D4250:

D2306:



Features:
1.High Quality Materials: with long life Japanese NMB ball bearings, efficient Japanese Kawasaki stator steel and oxygen free pure
comer wires, CNC machined aluminum case.
2.High Temperature Resistance: N40UH magnets and silicone wire leads are able to withstand high temperatures.
3.Brushless Motor: light weight, 1500KV high RPM and powerful brushless motor bring you a stimulated flight.
4.Patented balance techniques
5.Suit for RC Fixed Wing Airplane Multicopter

Description:
1.This professional brushless motor comes with high quality.
2.Powerful motor with light weight is sure to bring you stimulated flight.
3.It is a good choice for RC drone fans.

Specifications:

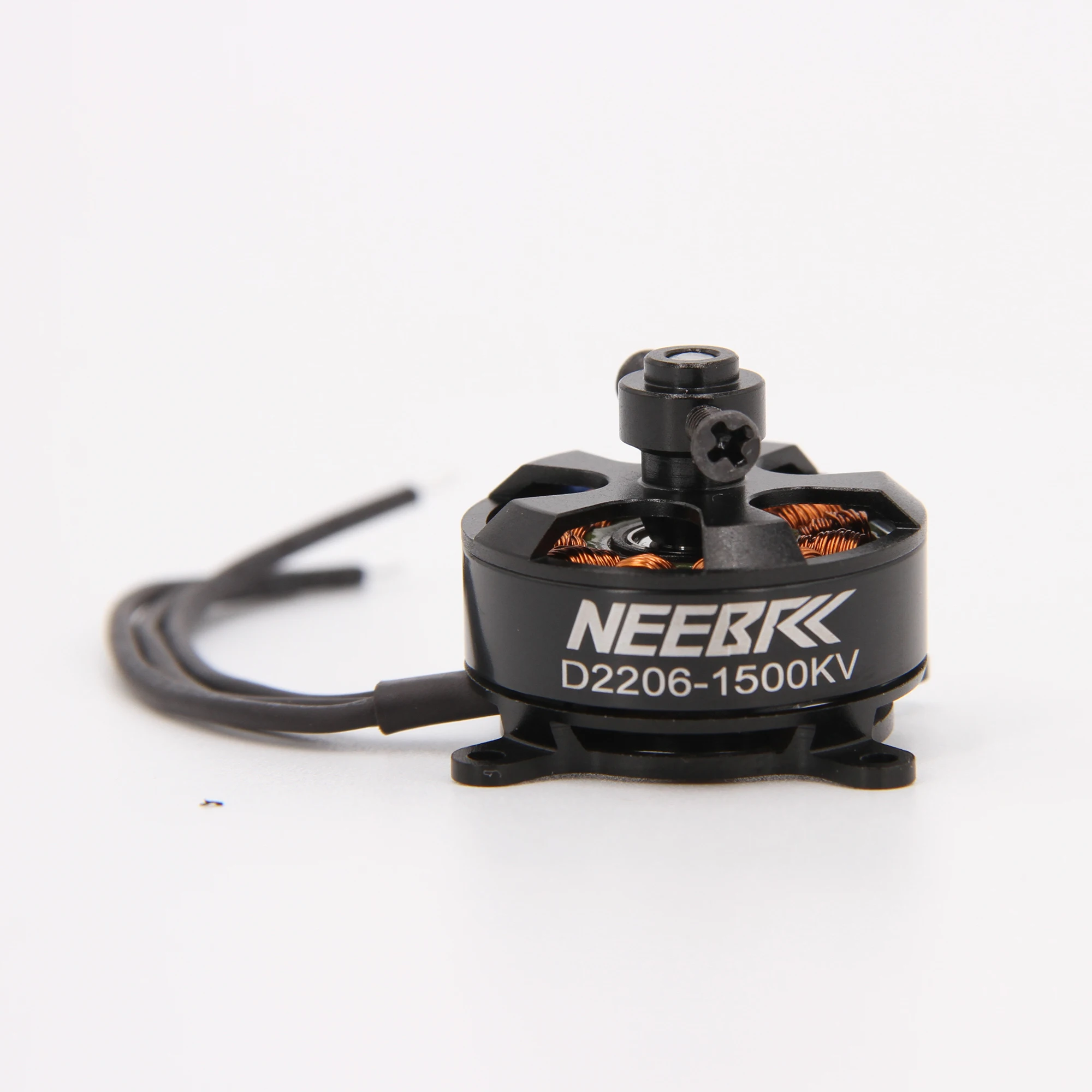

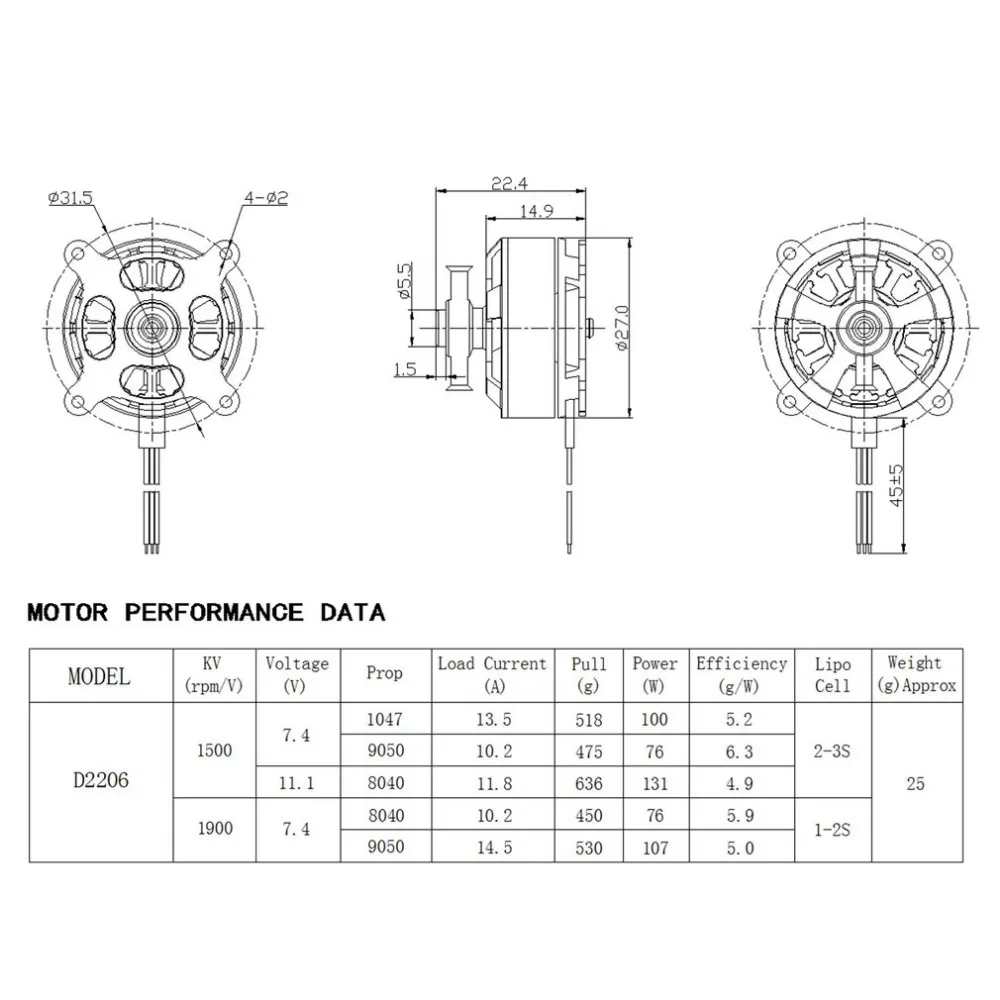

Model: D2206 1500KV Motor
KV(RPM/Volt): 1500KV
Battery (Cell Lipo): 2-3S
Suggested Prop: 1047 9050 8040
Length: 22.4mm
Width: 27mm
Shaft Diameter: 5.5mm
Item Weight: 25g/pcs

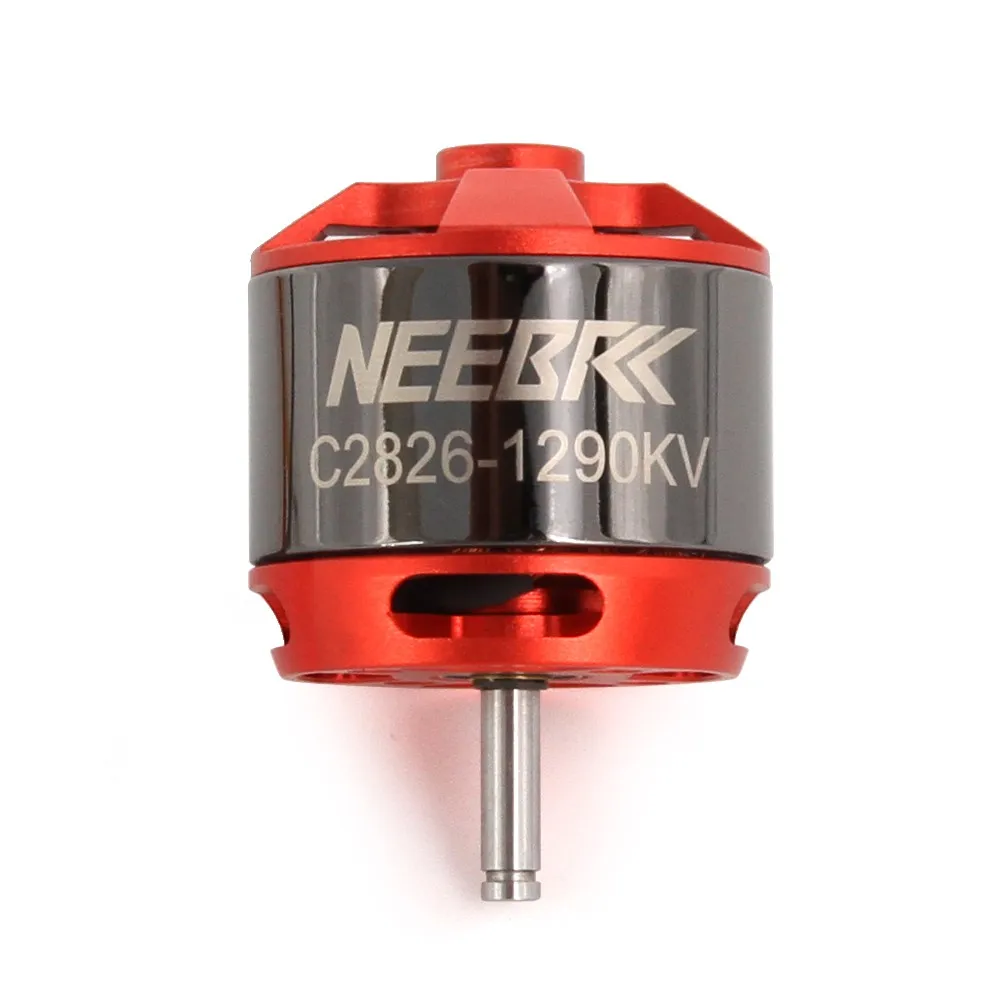

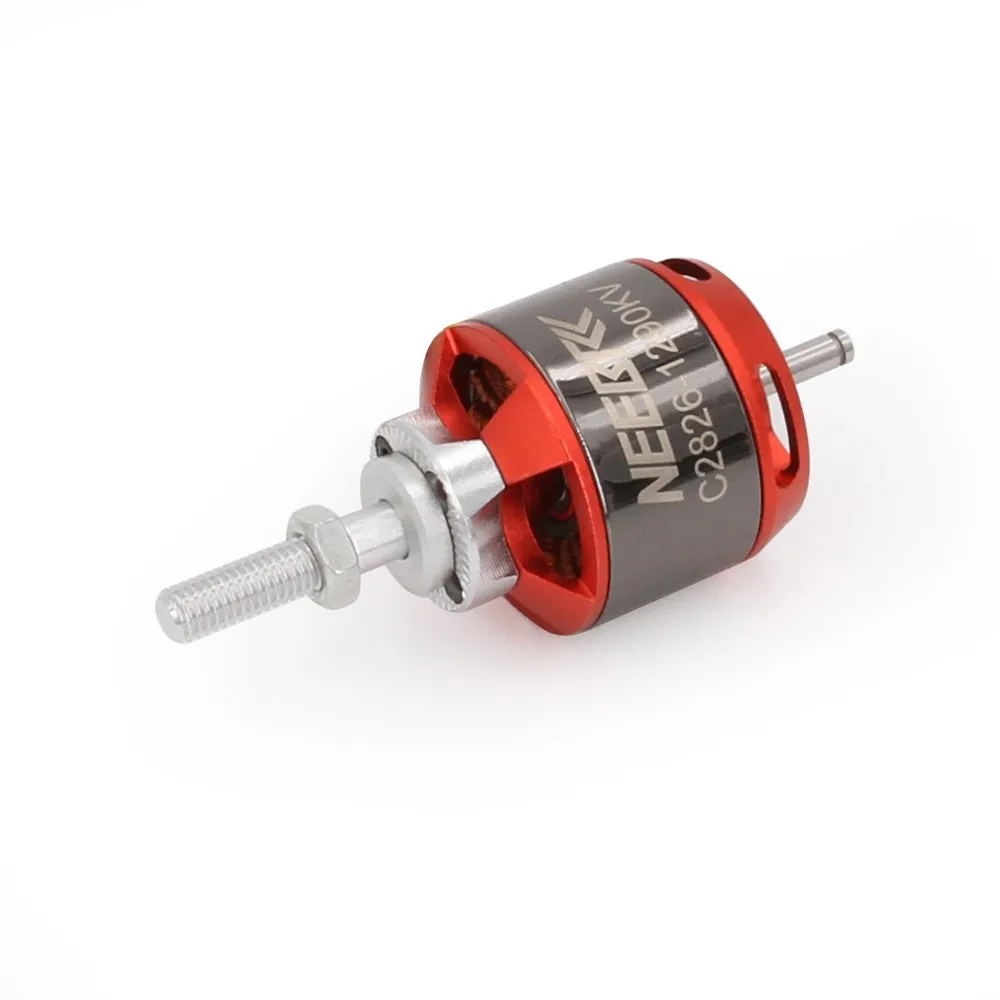

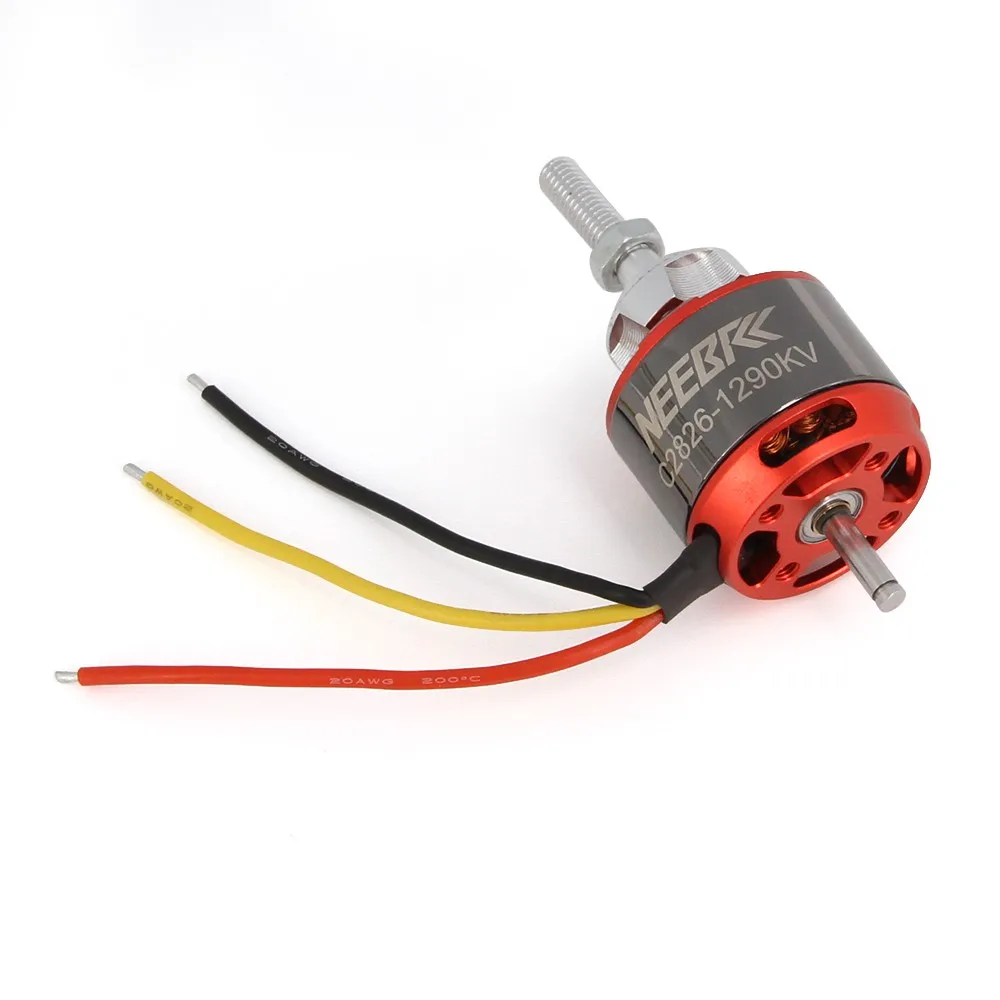

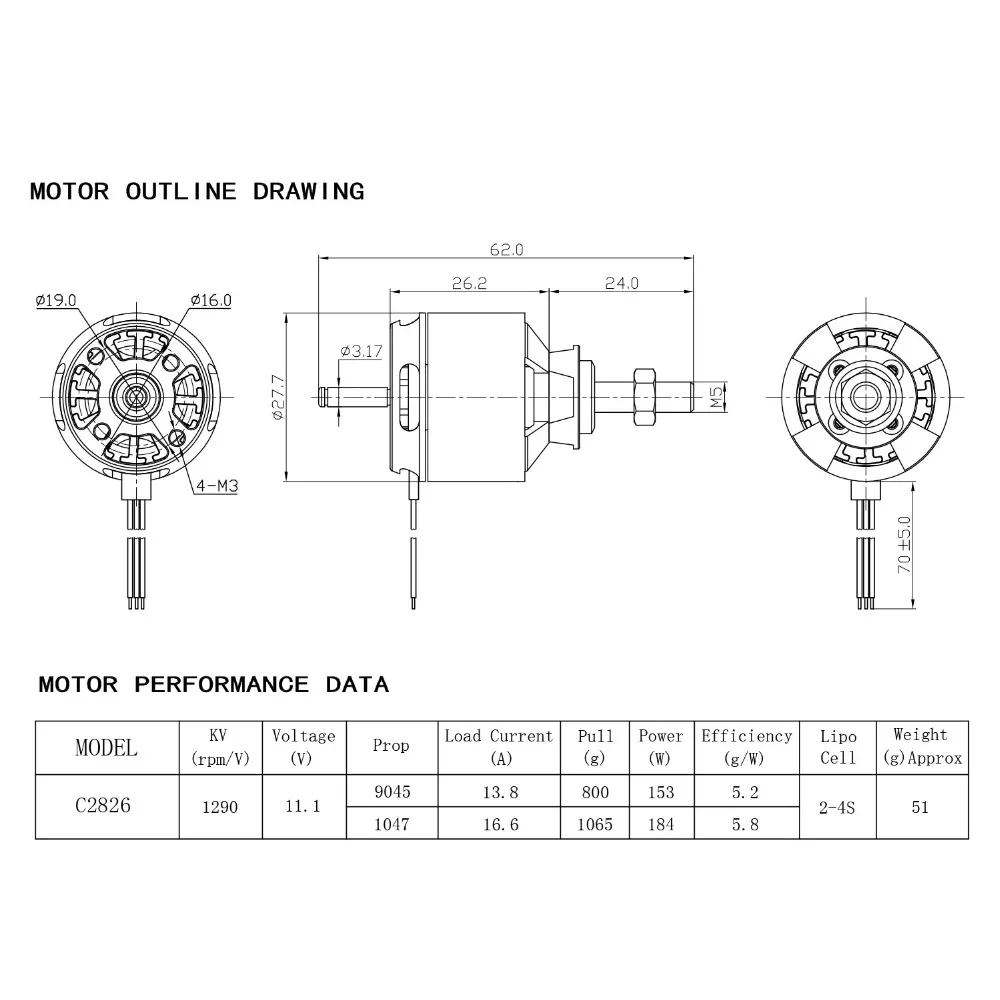

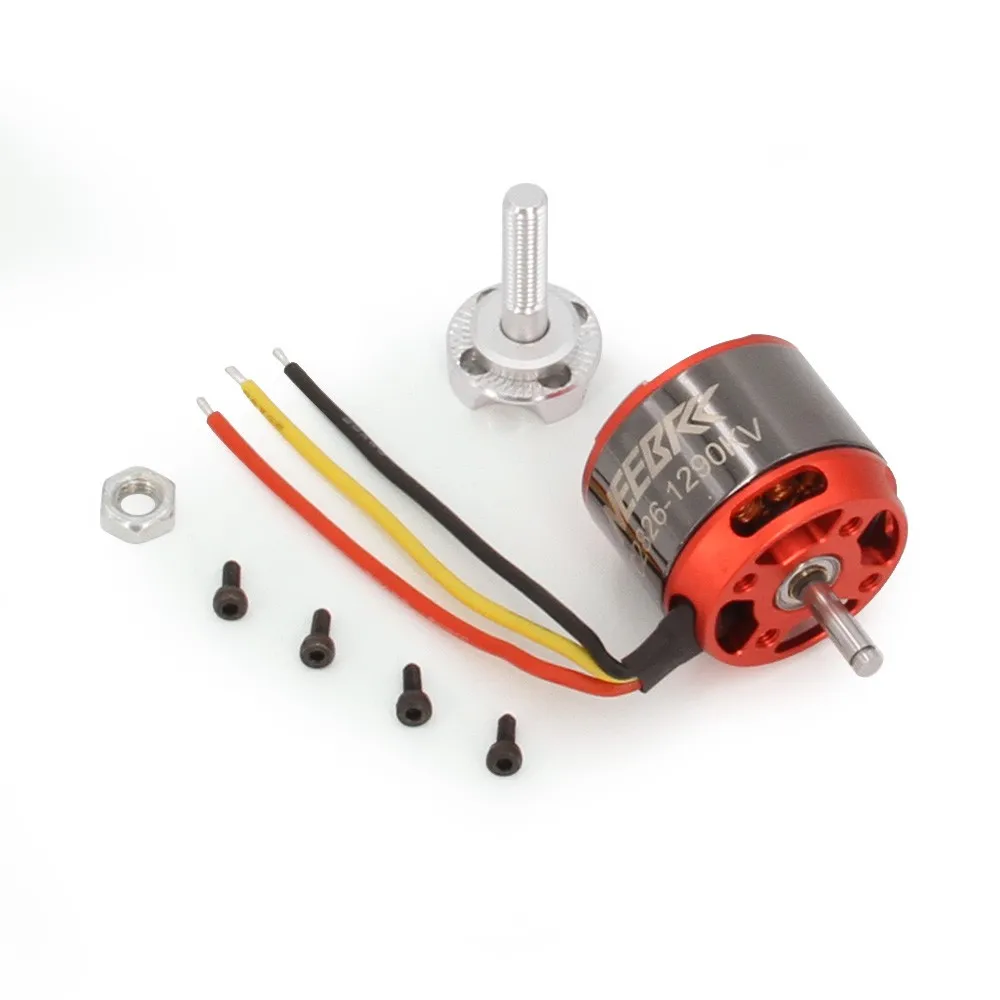

Model: C2826 1290KV Motor
KV(RPM/Volt): 1290KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 1290
Length: 62mm
Width: 27.7mm
Shaft Diameter: 5mm
Item Weight: 51g/pcs

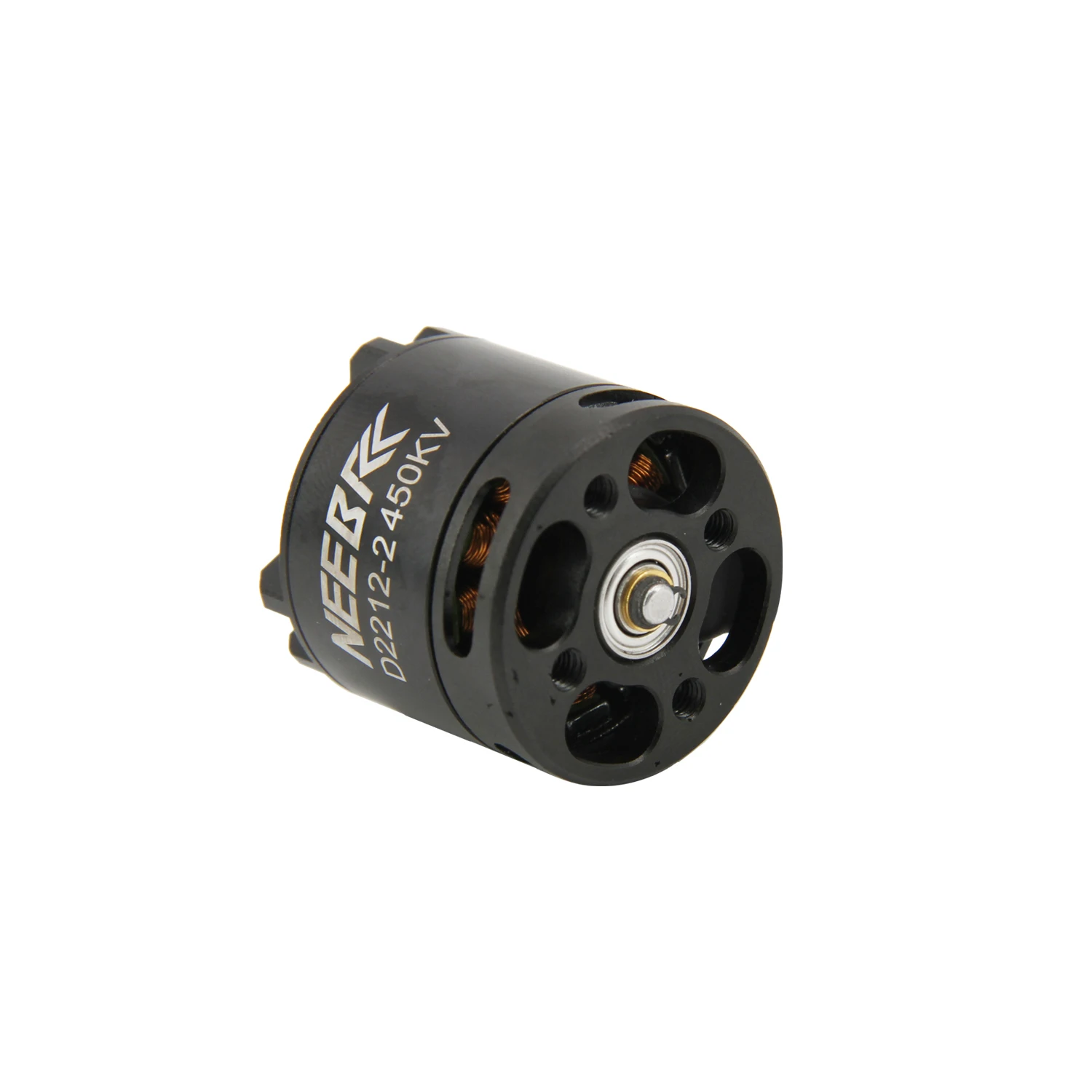

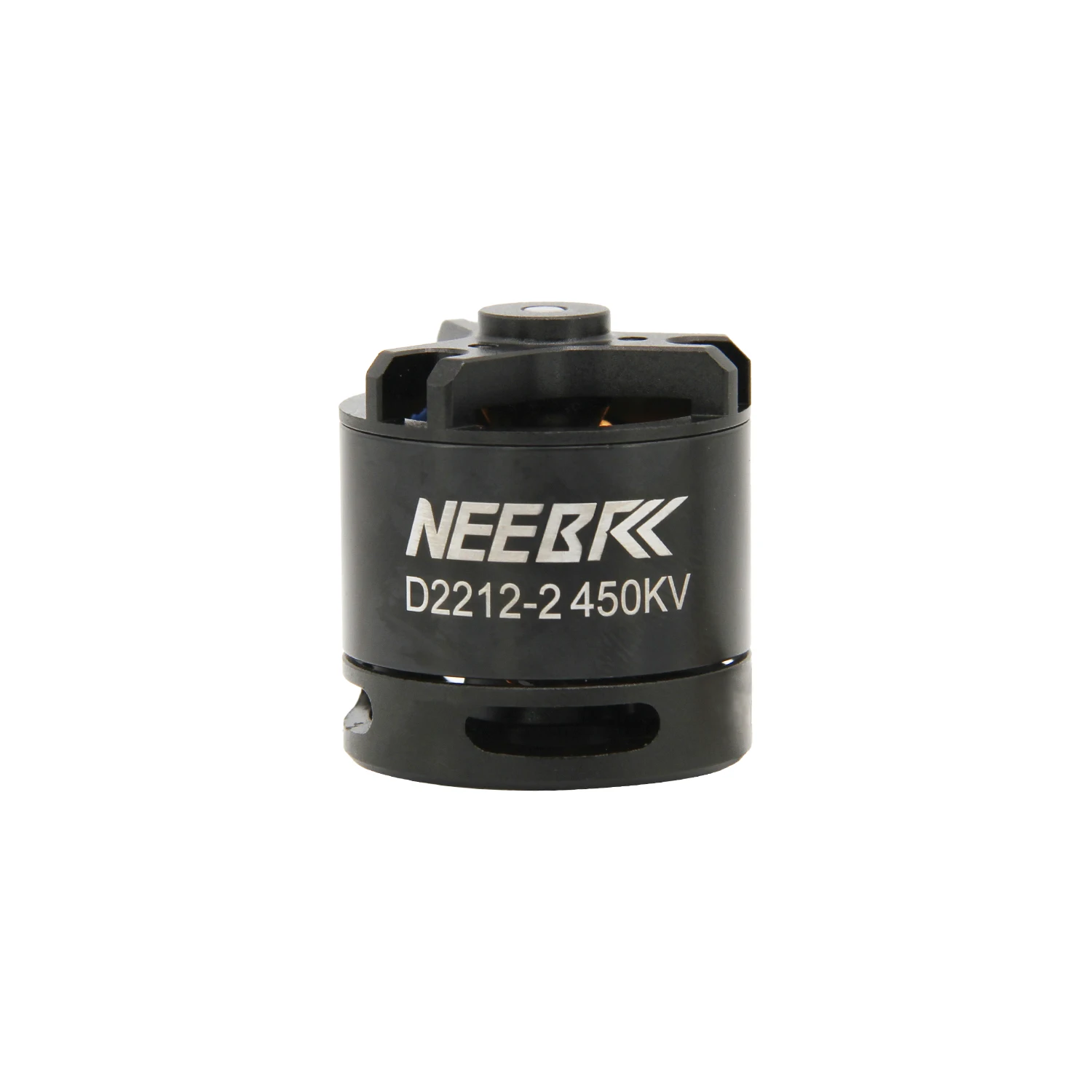

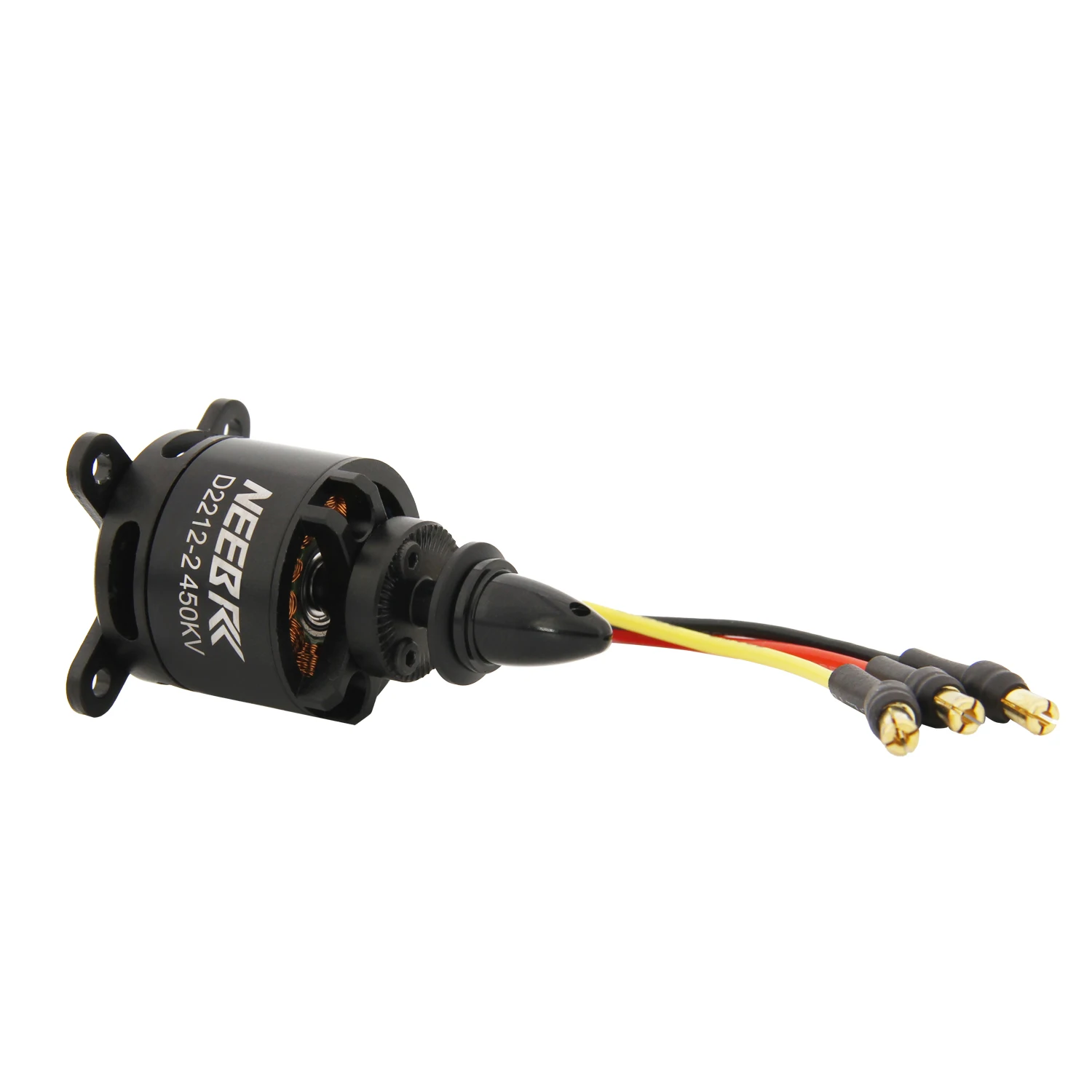

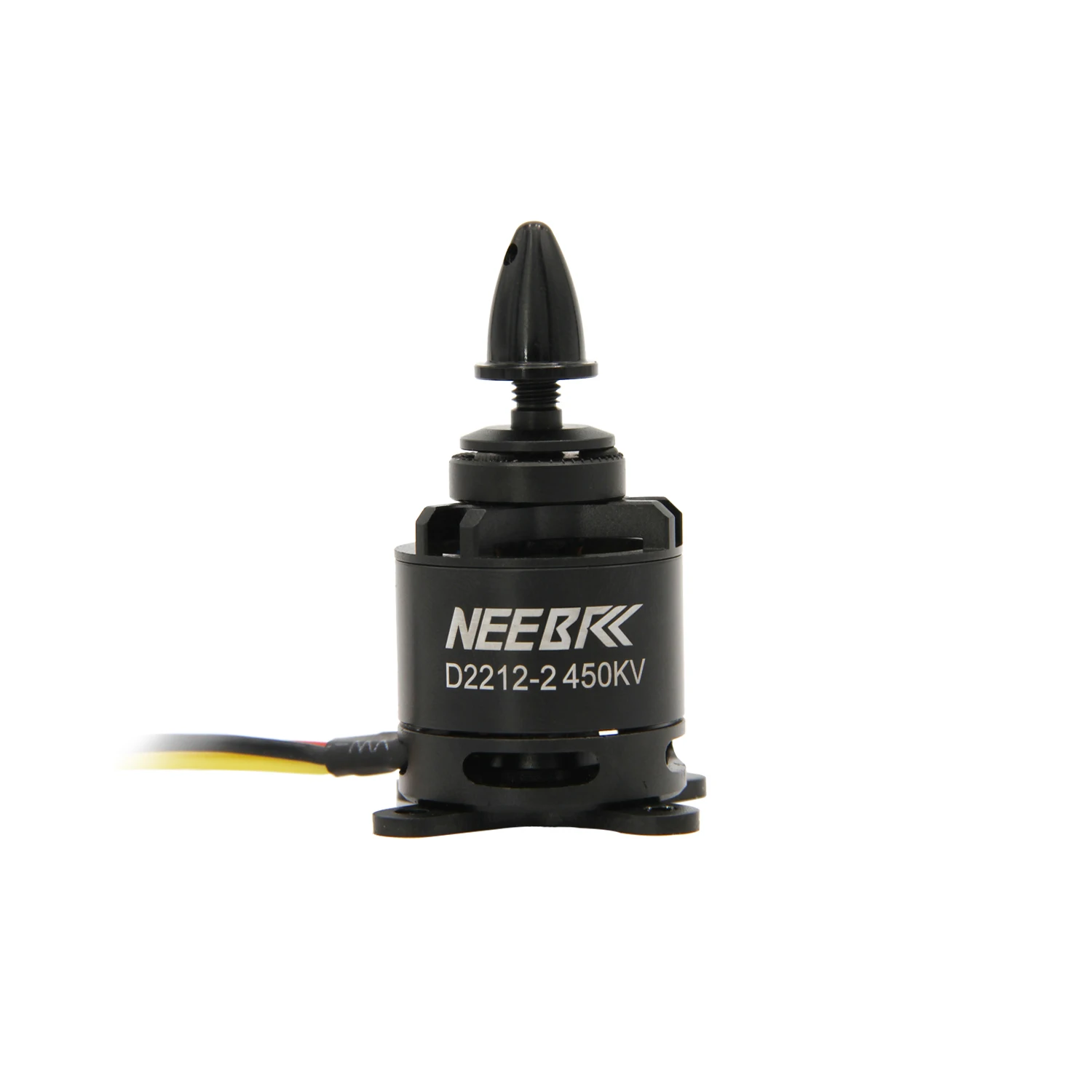

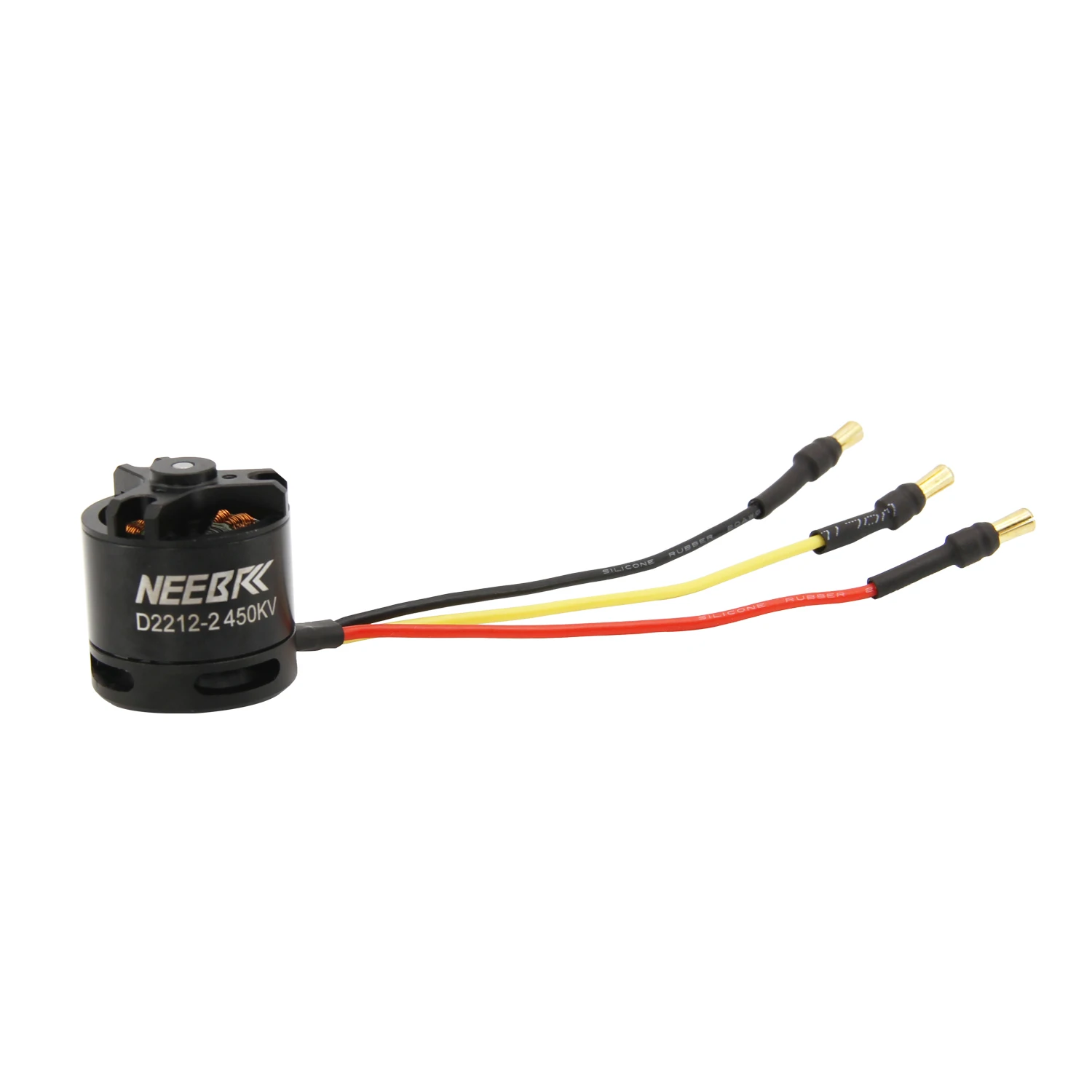

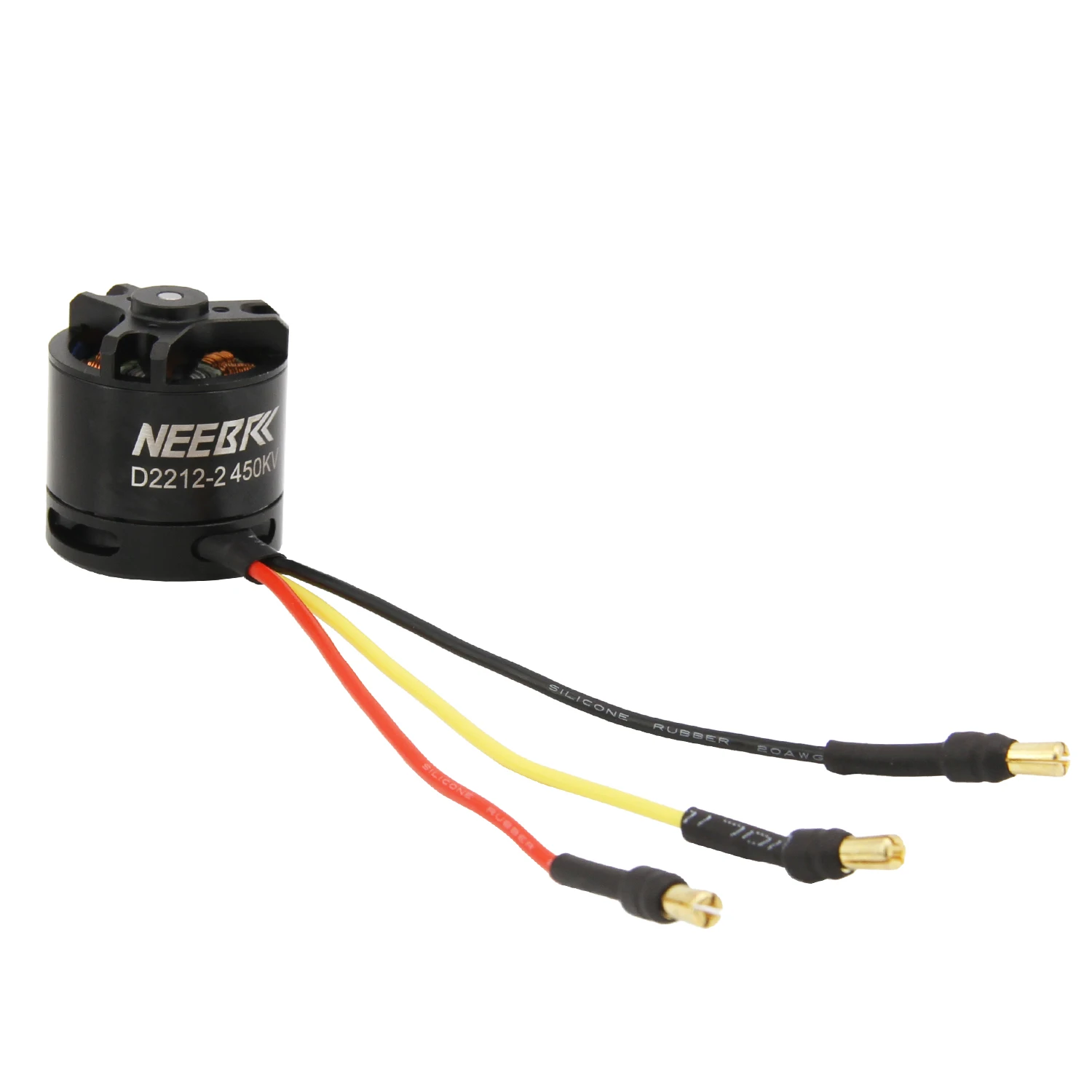

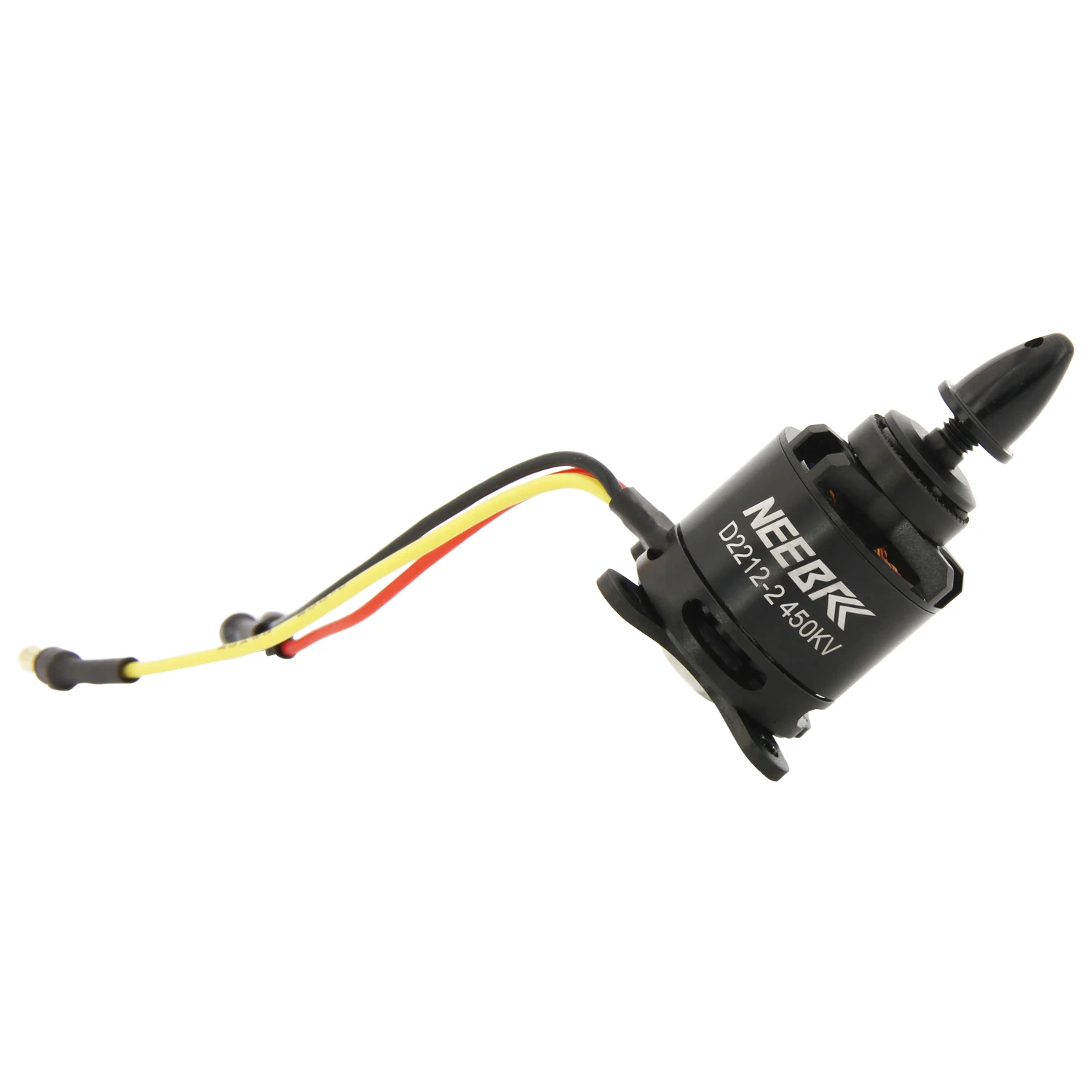

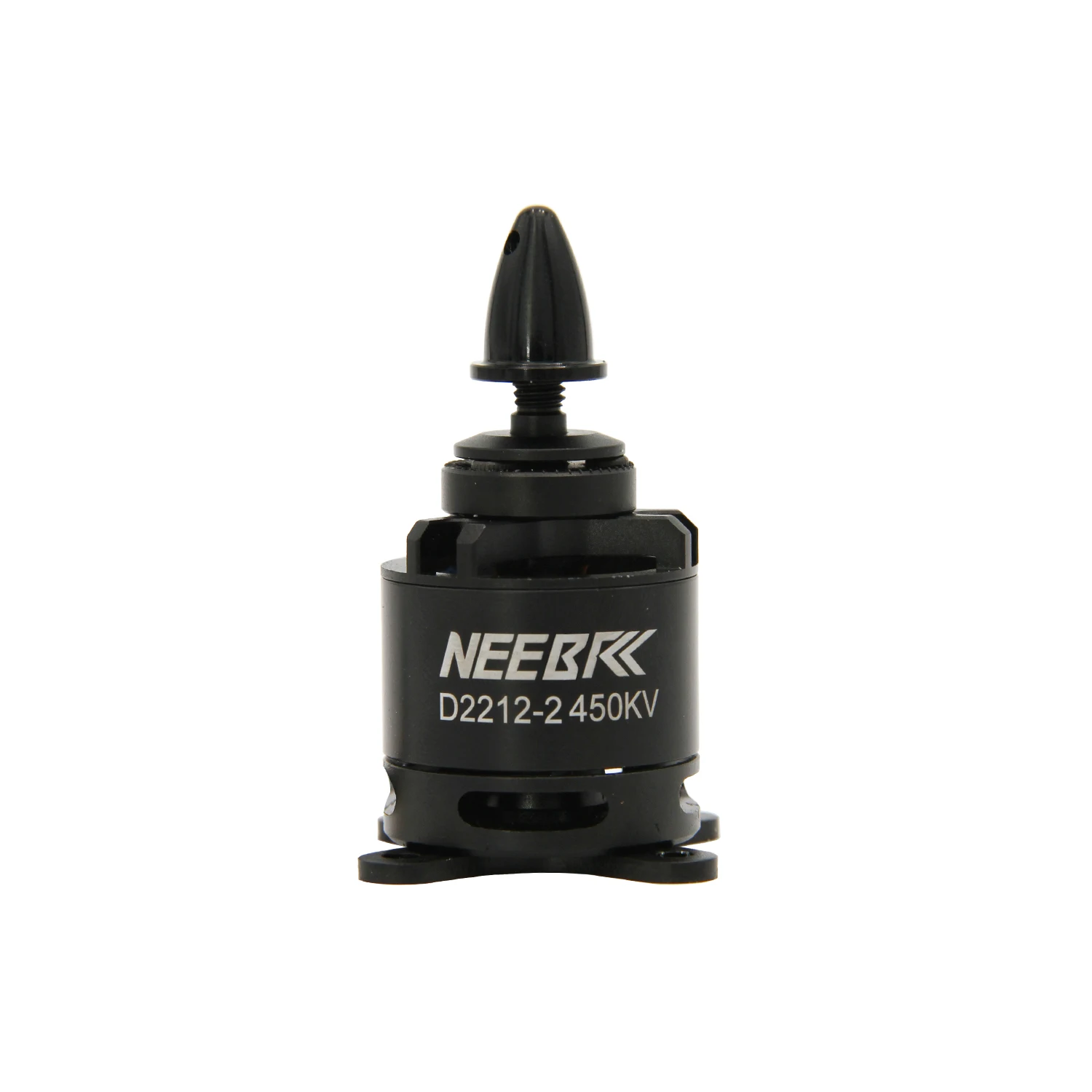

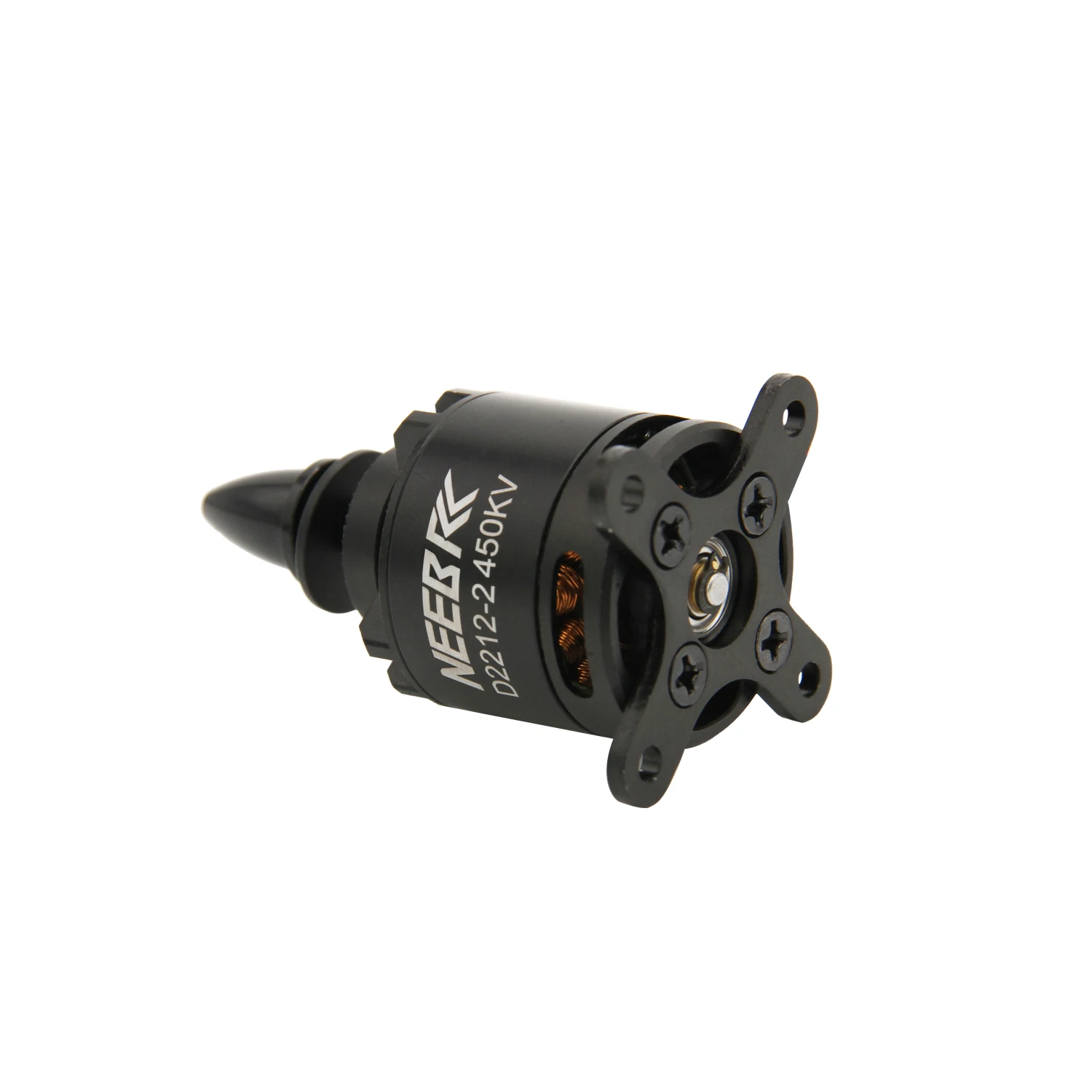

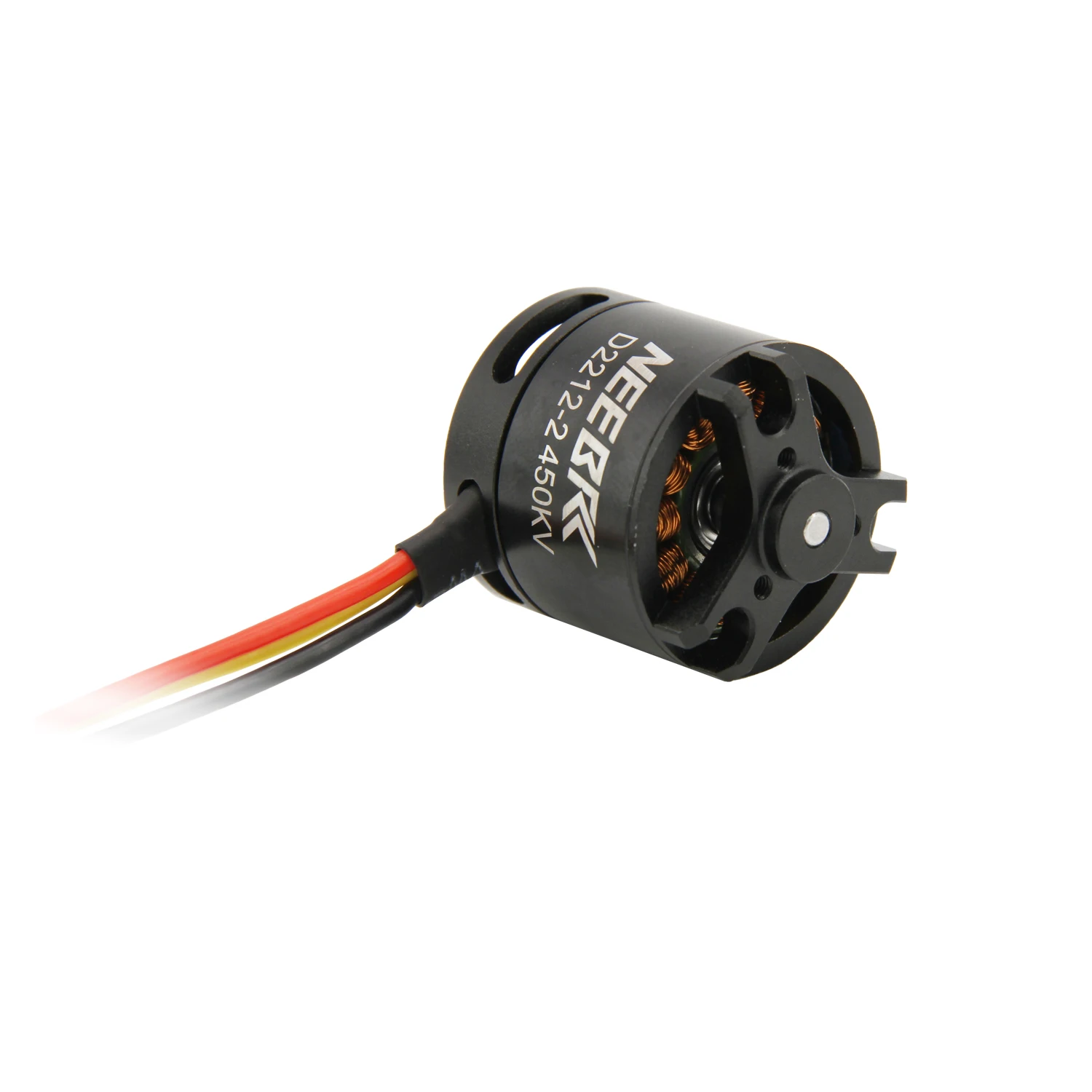

Model: D2212 2450KV Motor
KV(RPM/Volt): 2450KV
Battery (Cell Lipo): 2-3S
Suggested Prop: 6040
Length: 51.3mm
Width: 27.7mm
Shaft Diameter: 2mm
Item Weight: 58g/pcs

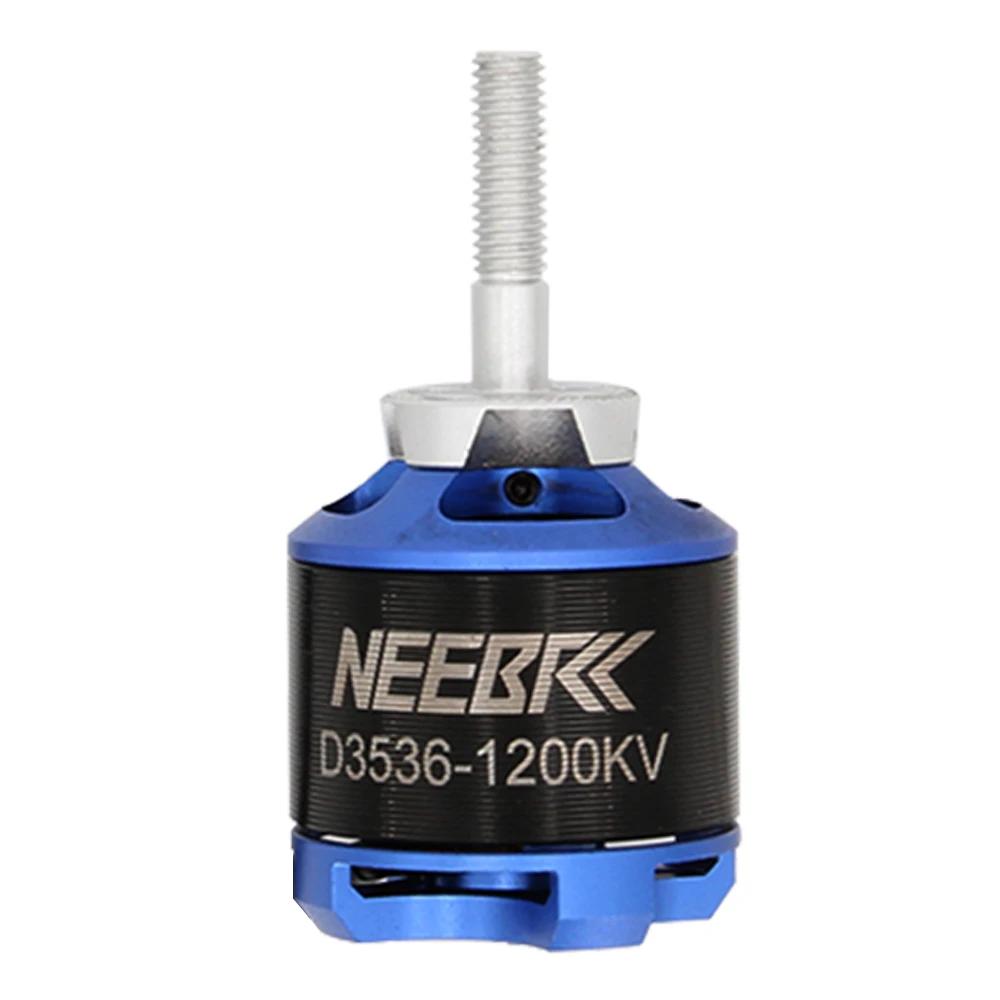

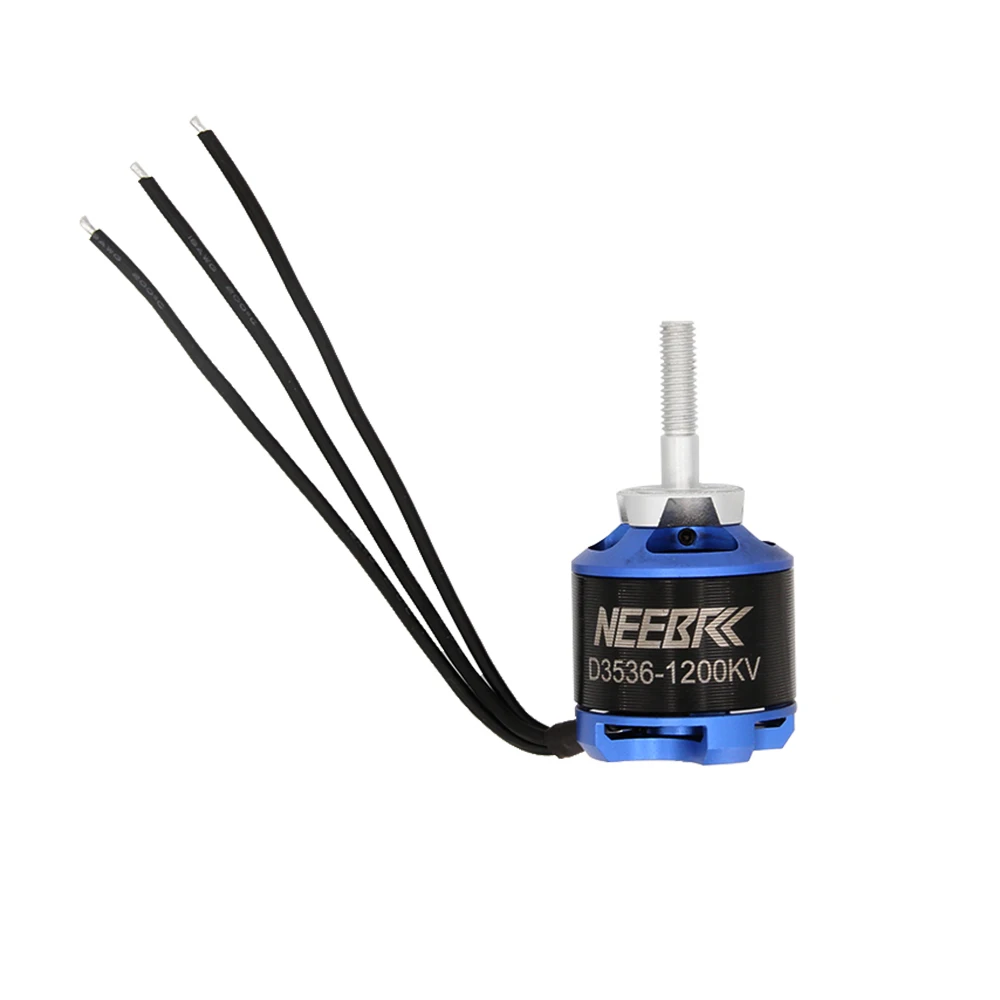

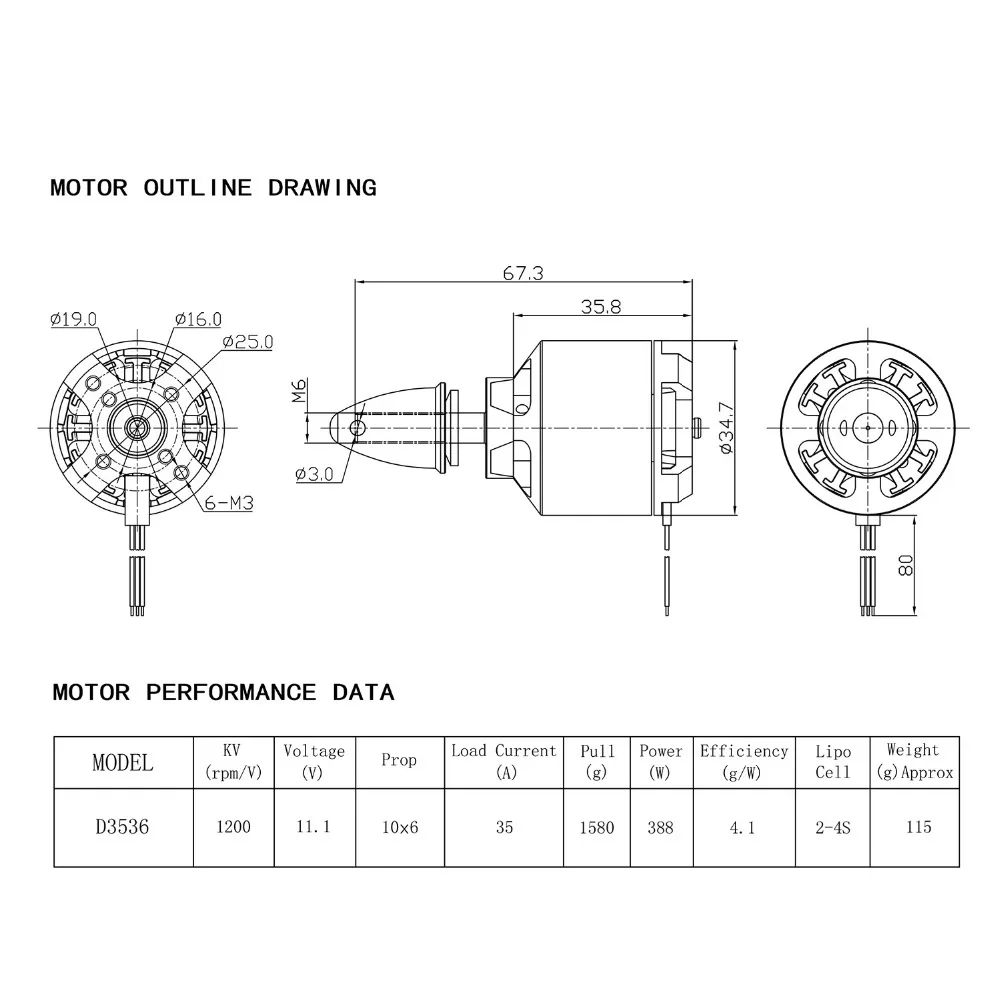

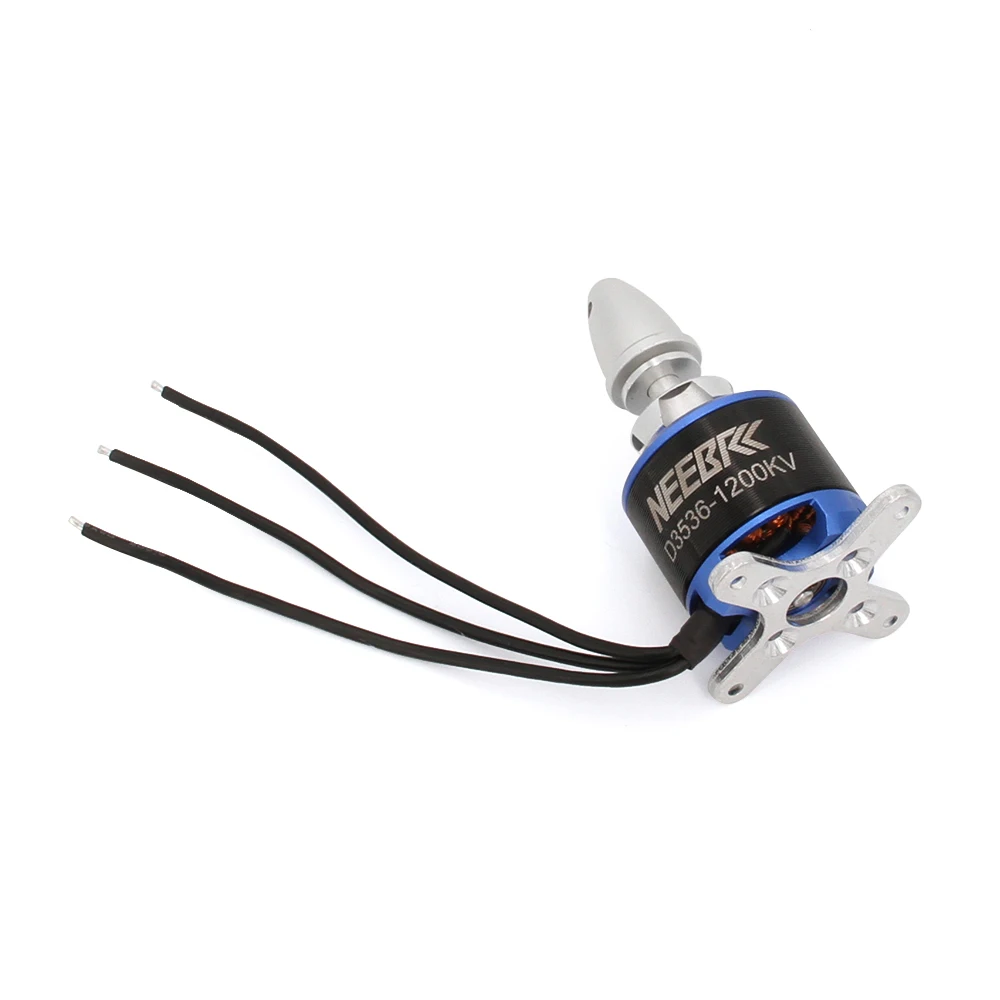

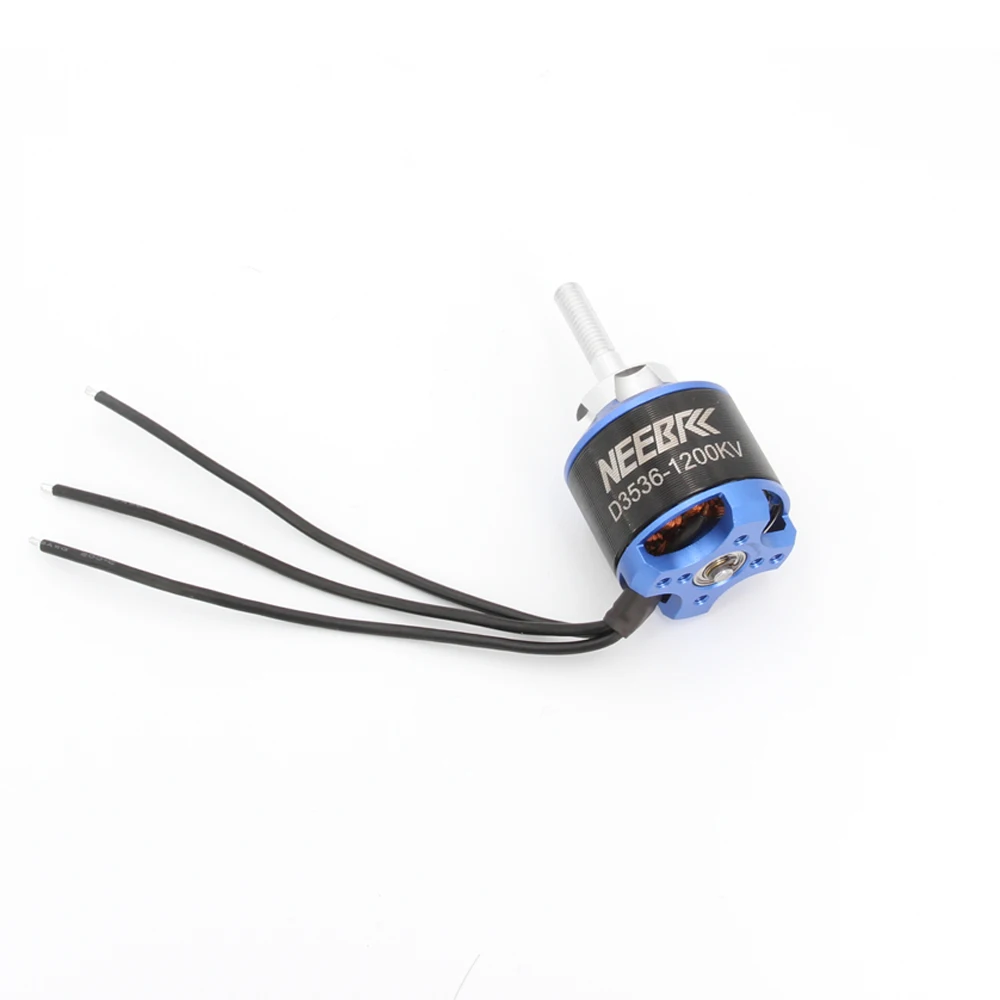

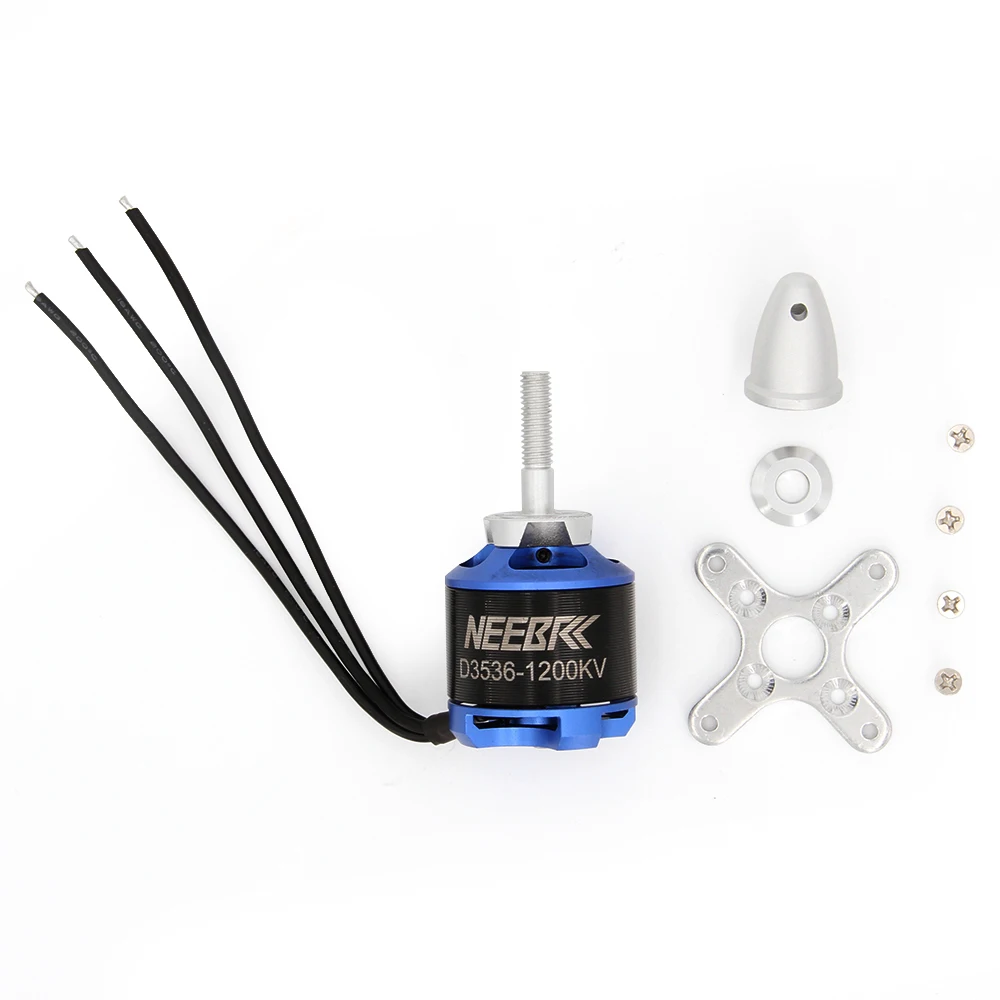

Model: D3536 1200KV Motor
KV(RPM/Volt): 1200KV
Battery (Cell Lipo): 2-4S

Suggested Prop: 10 x 6
Voltage:11.1
Load Current(A):35
Pull:(G):1580
Power(W):388
Efficiency(g/W):4.1
Length: 67.3mm
Width: 34.7mm
Shaft Diameter: 6mm
Item Weight: 111g/pcs

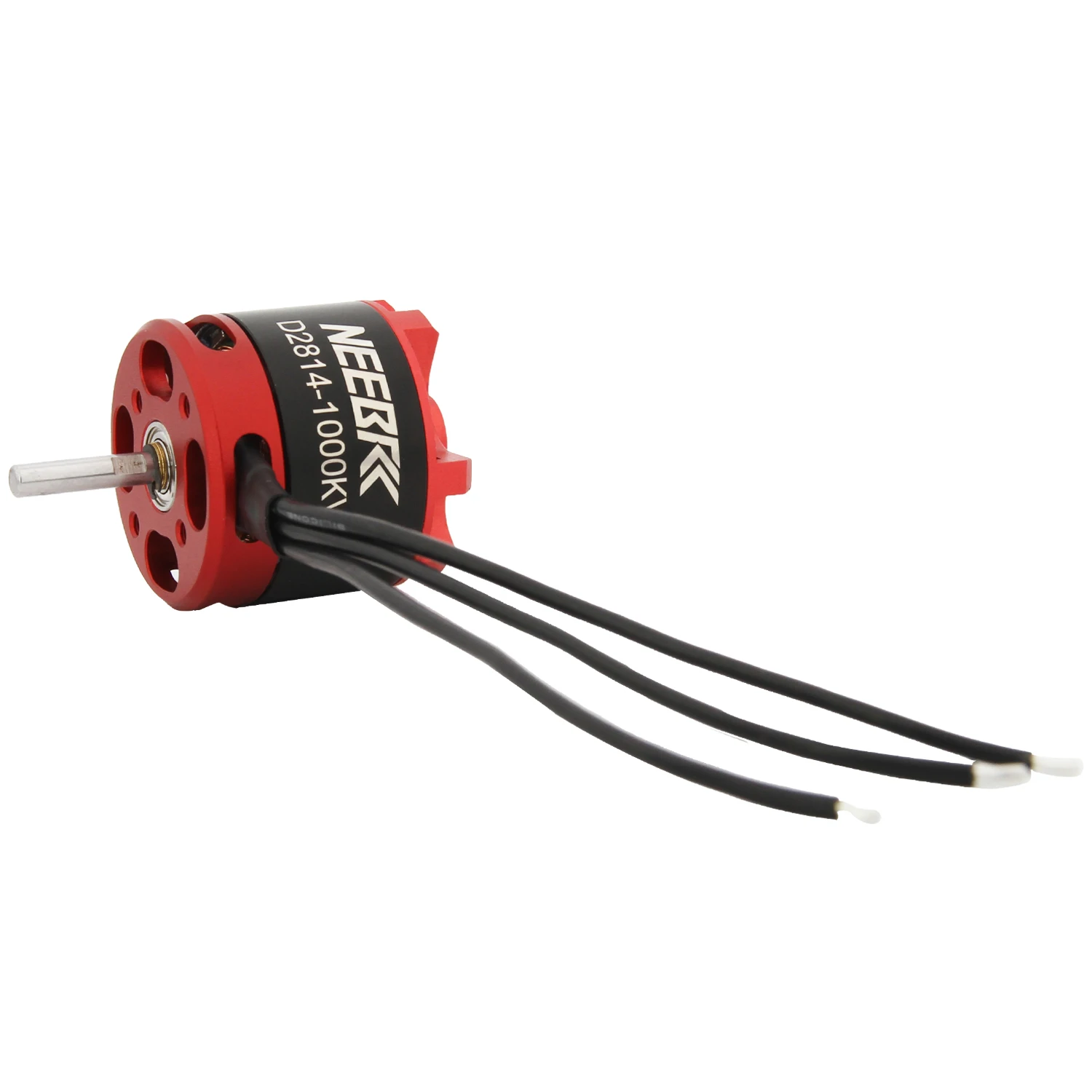

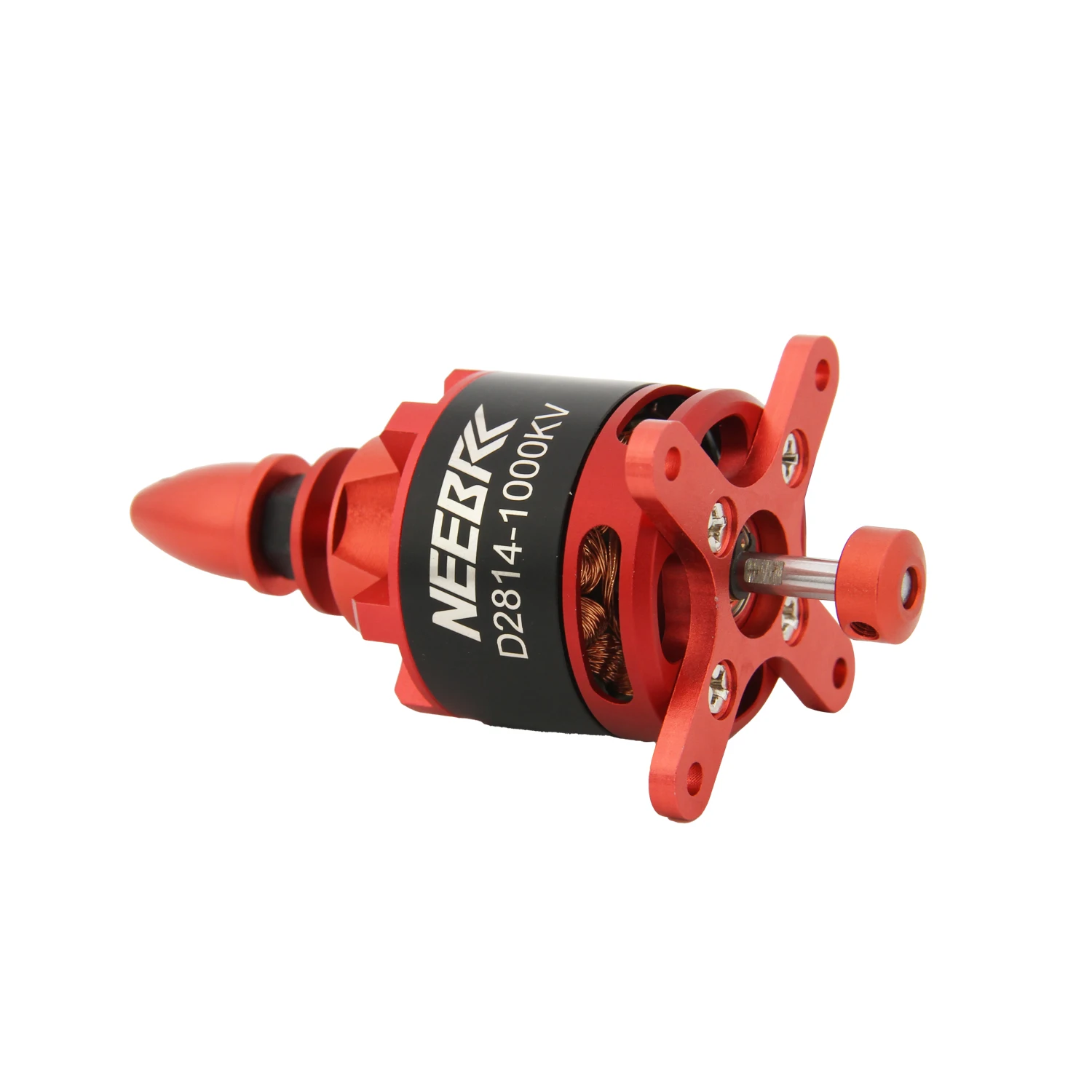

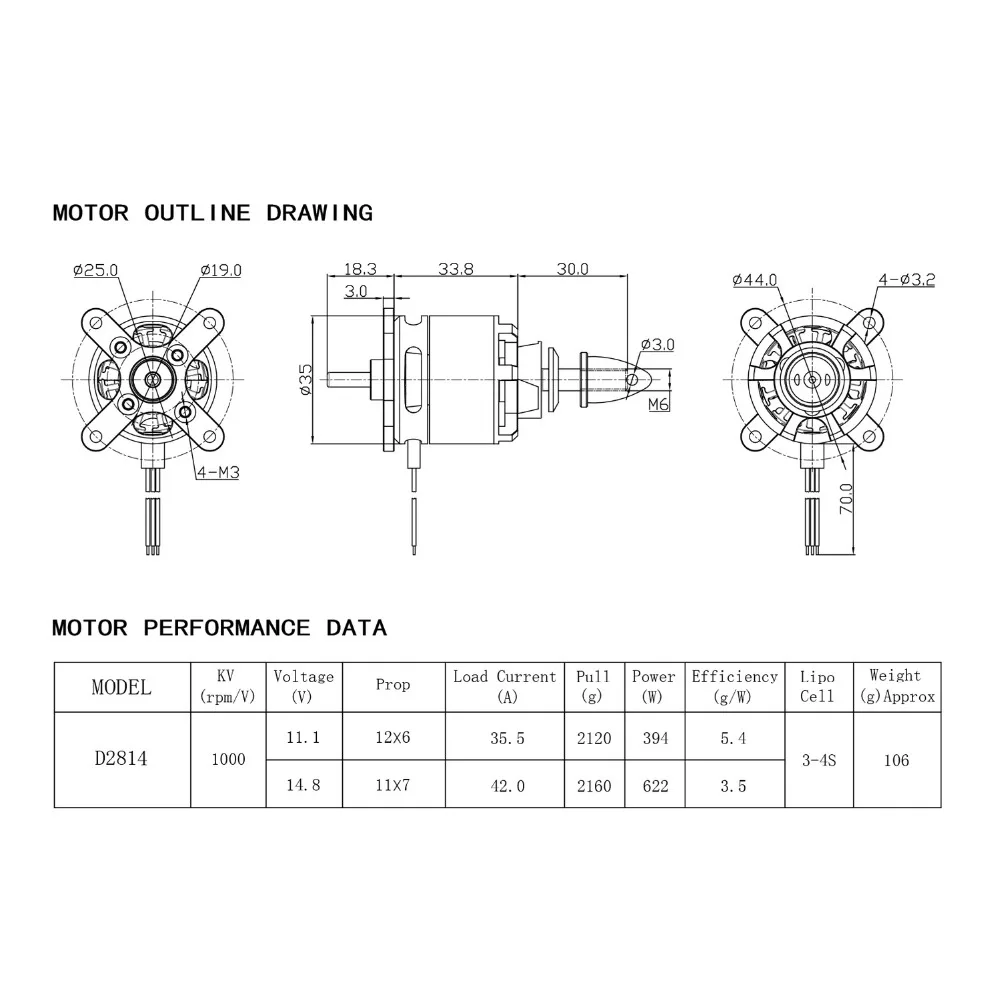

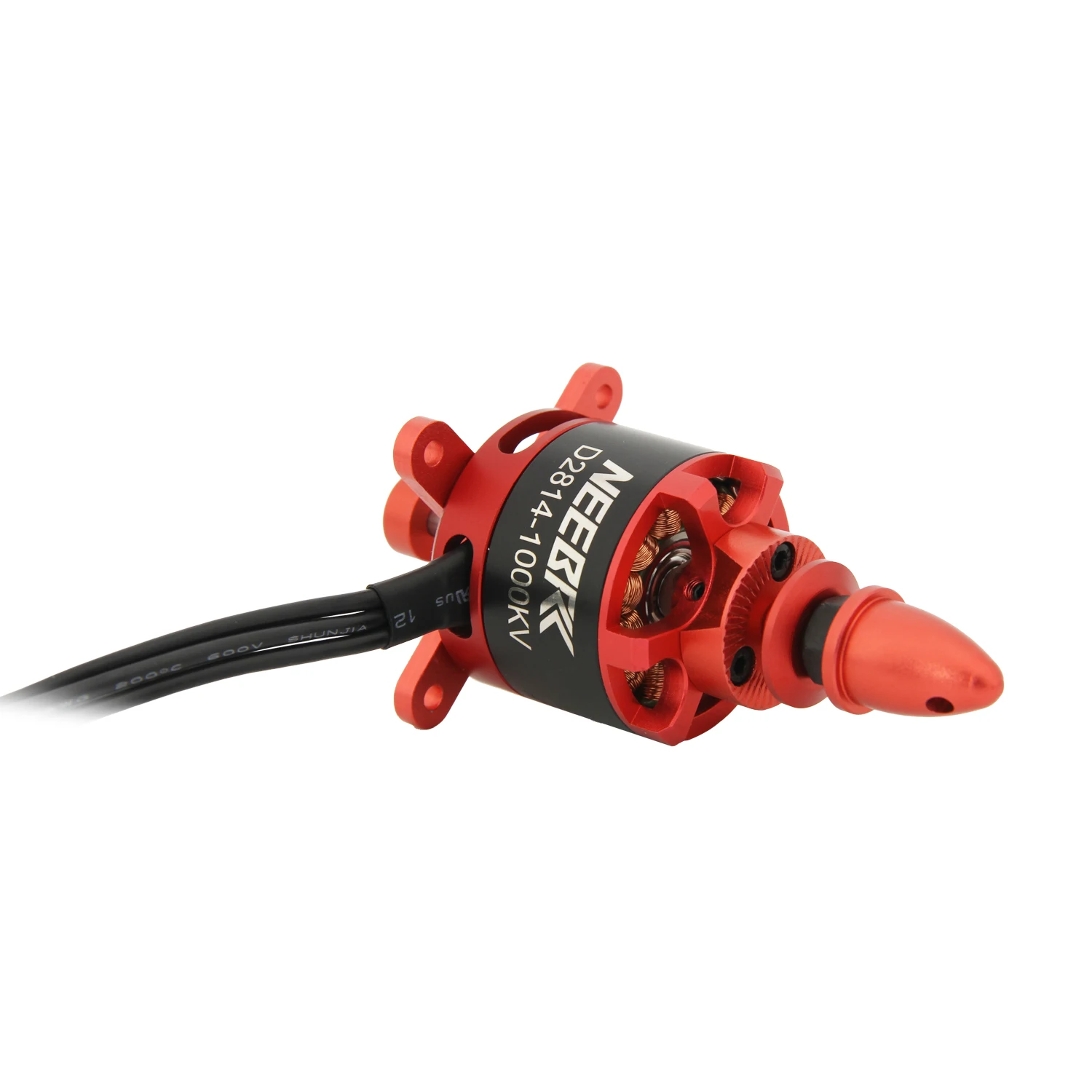

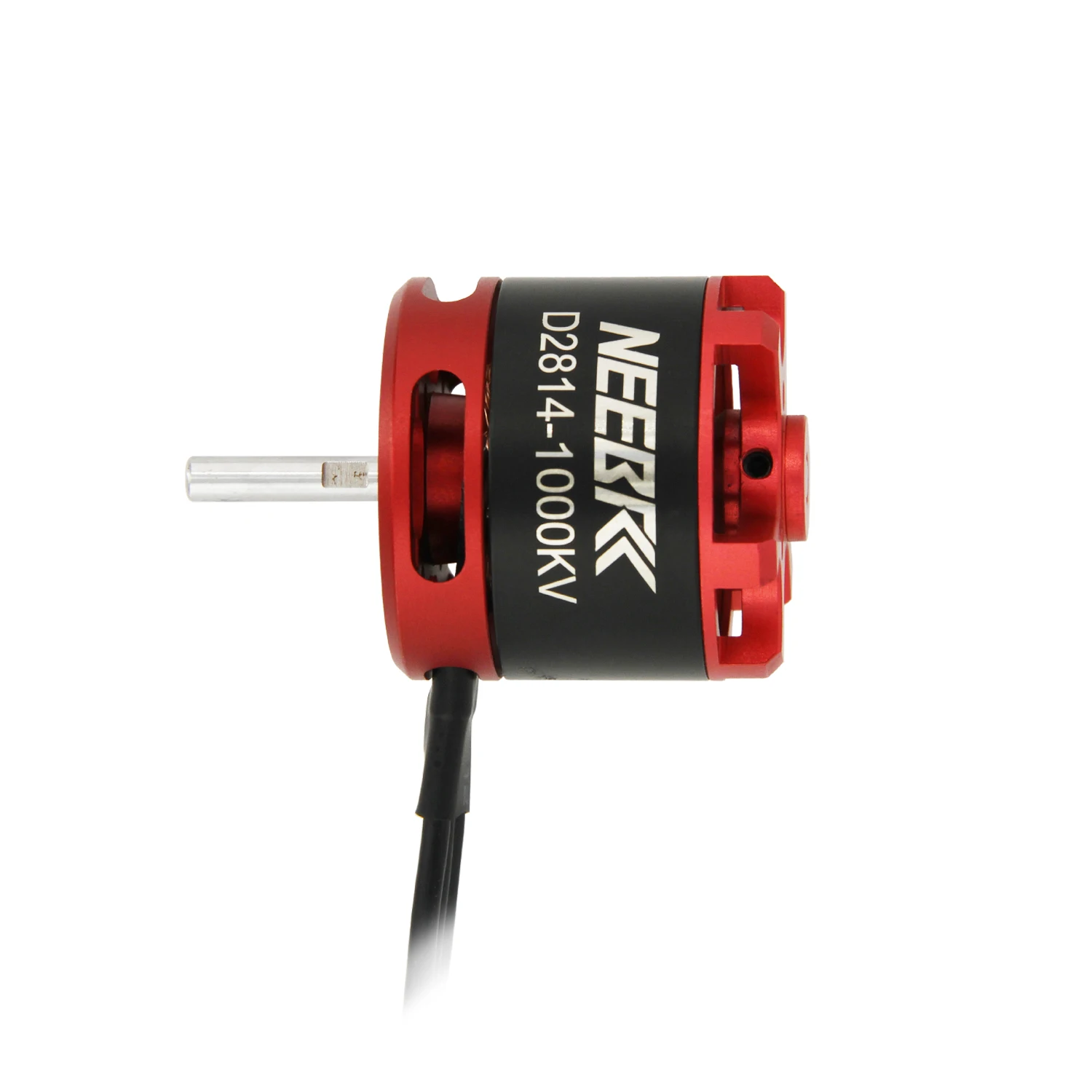

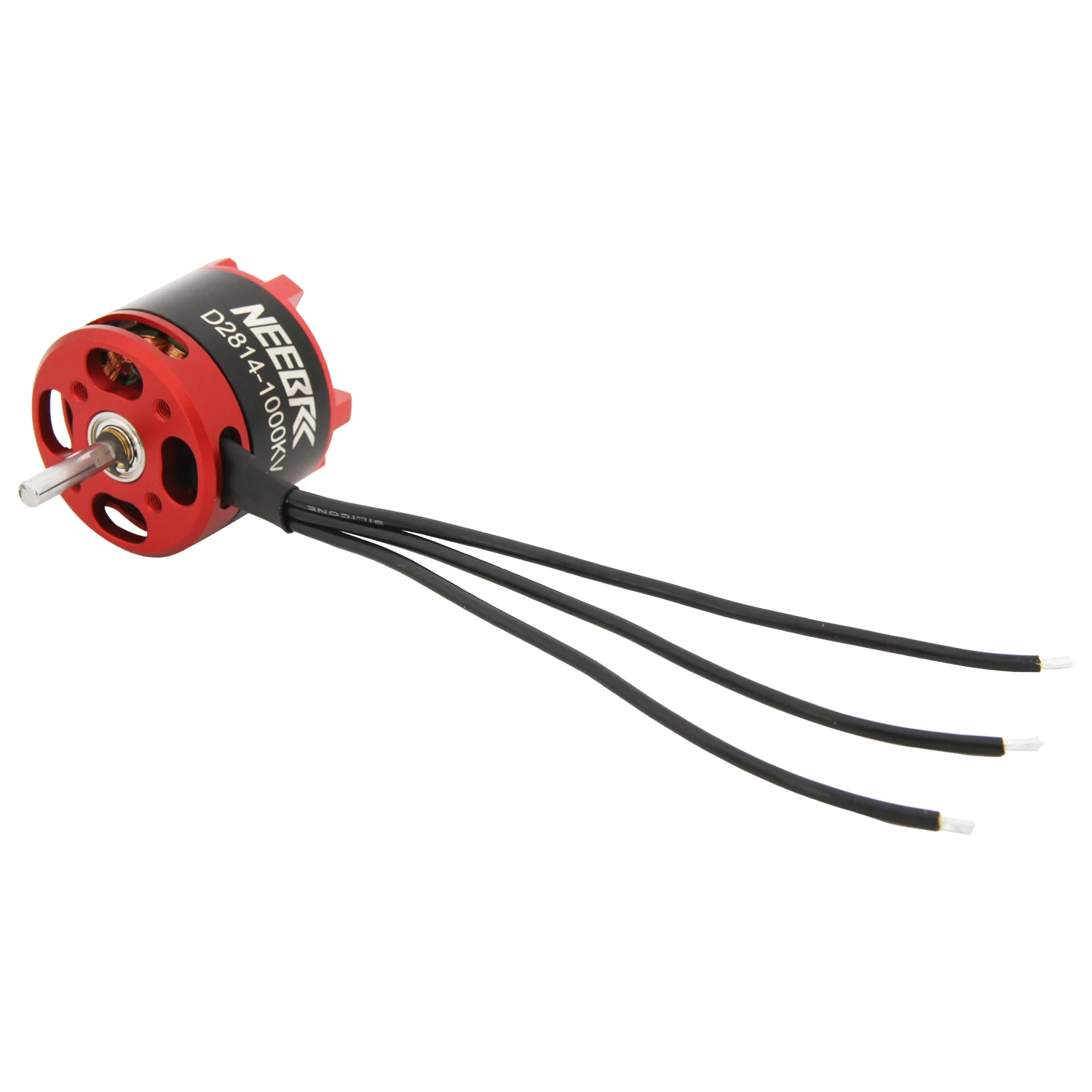

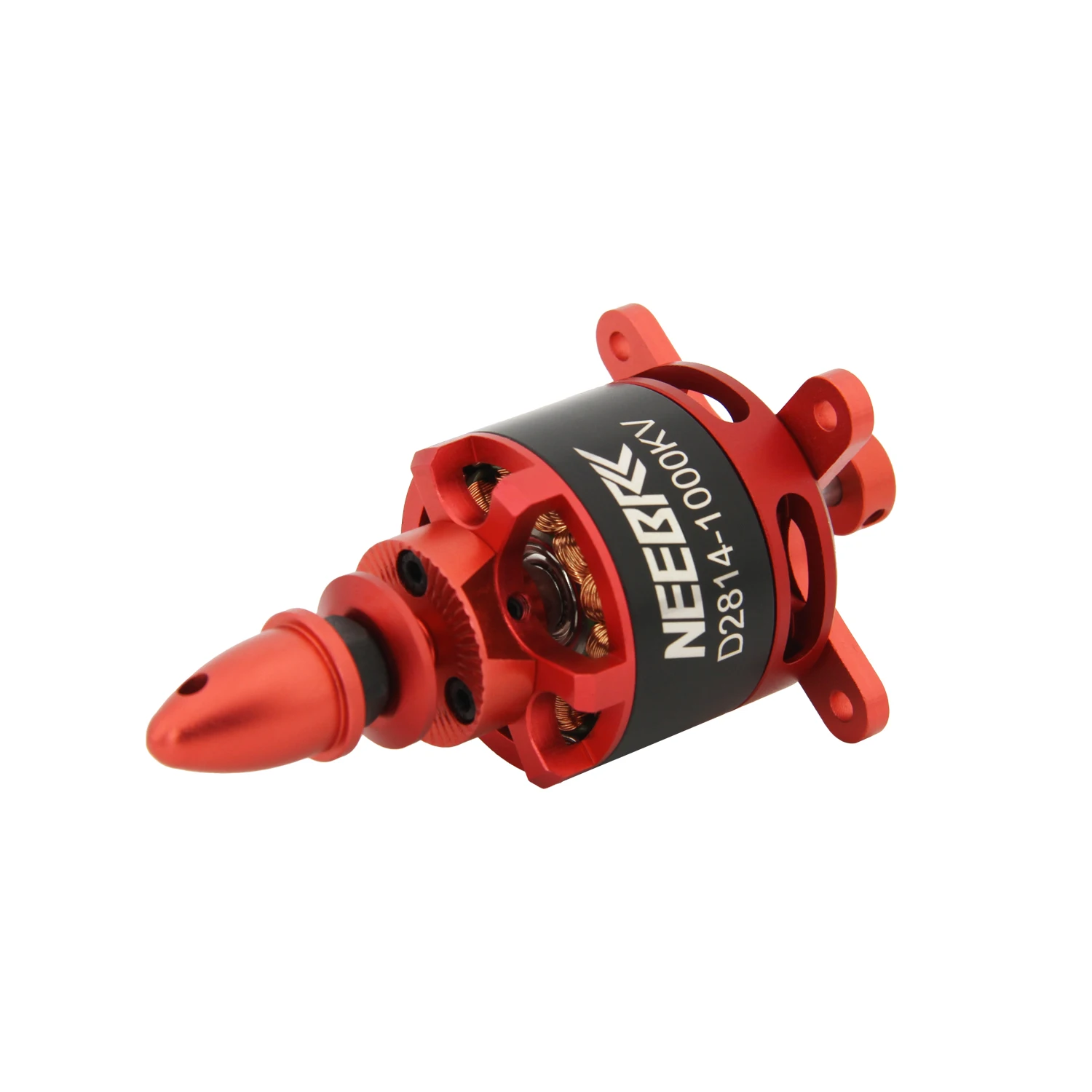

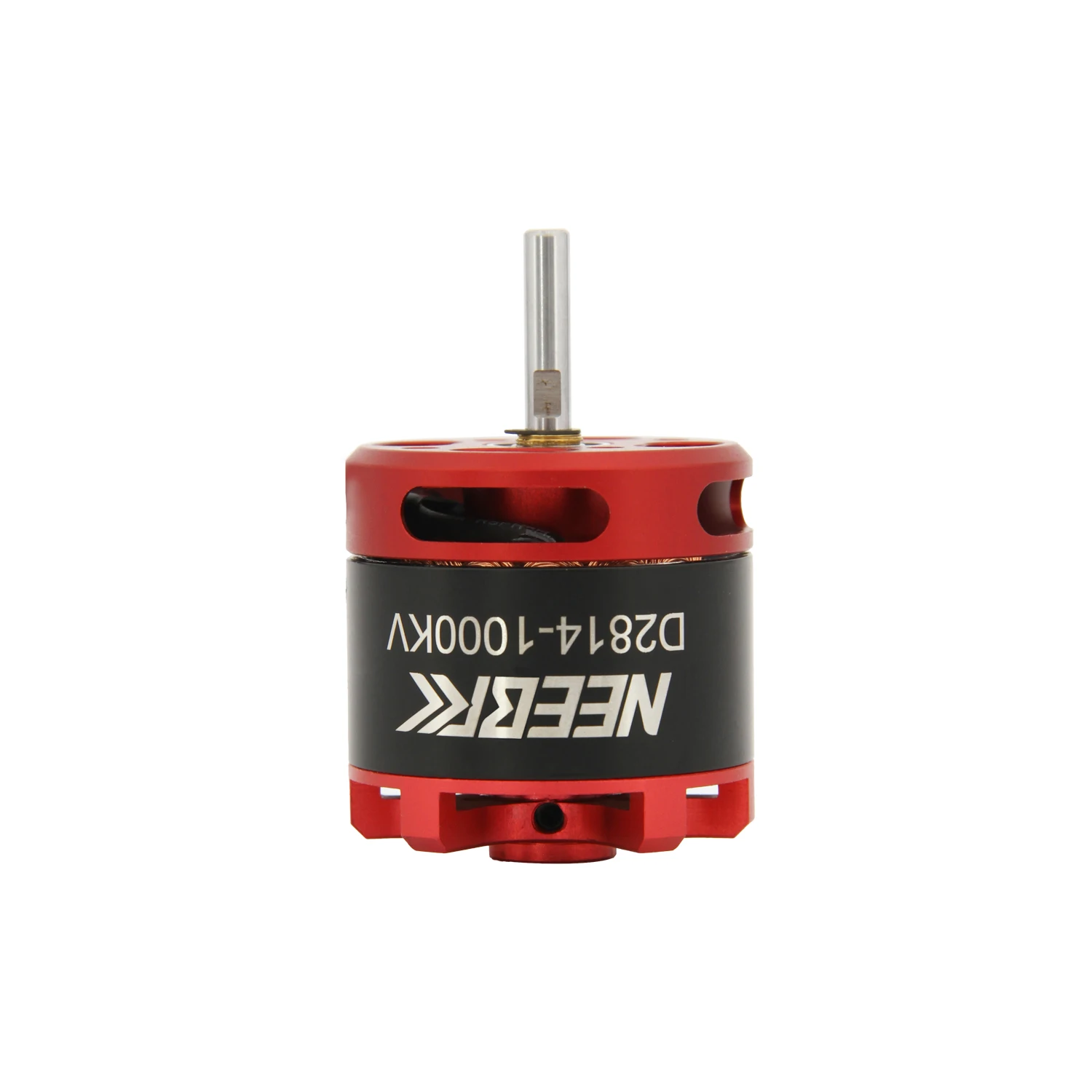

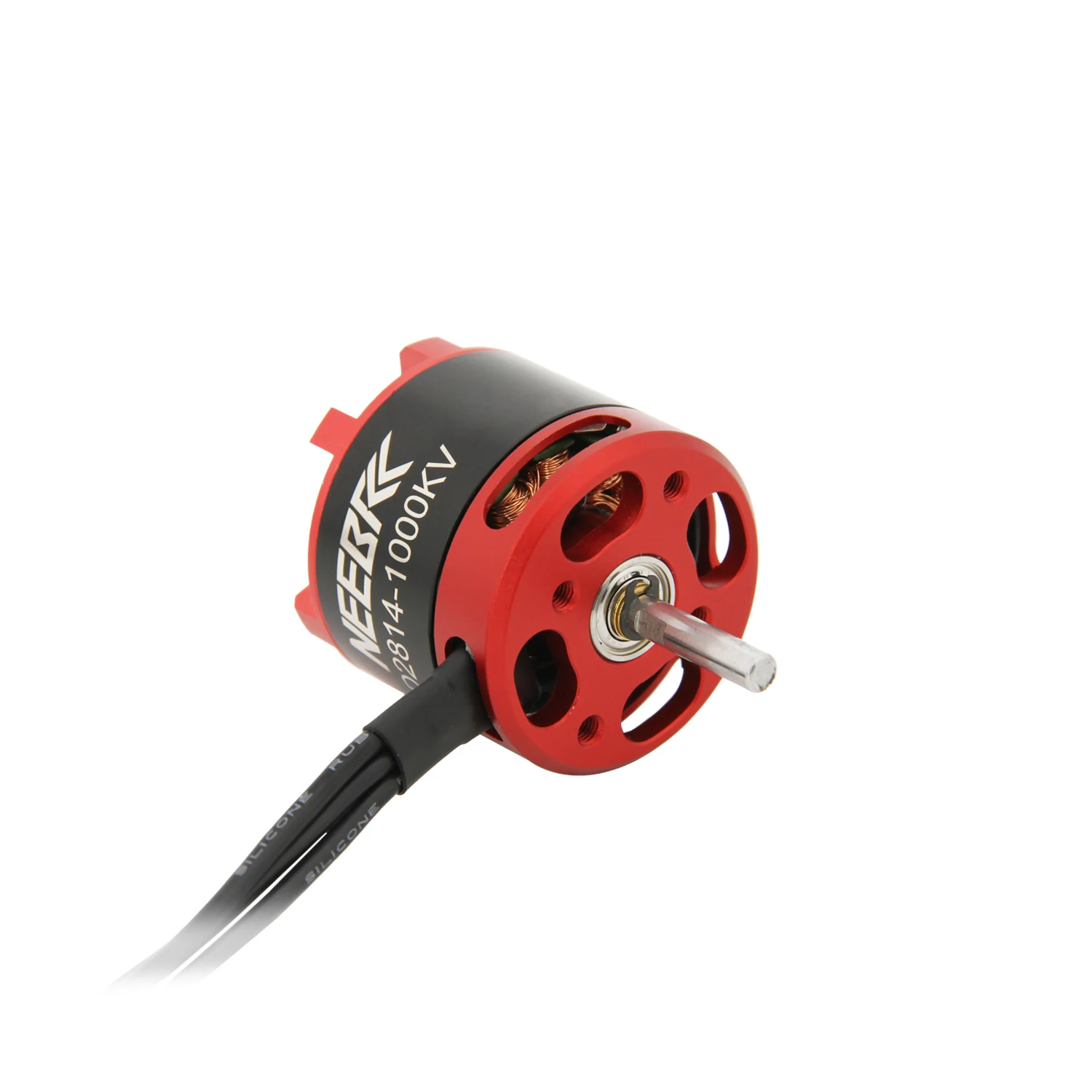

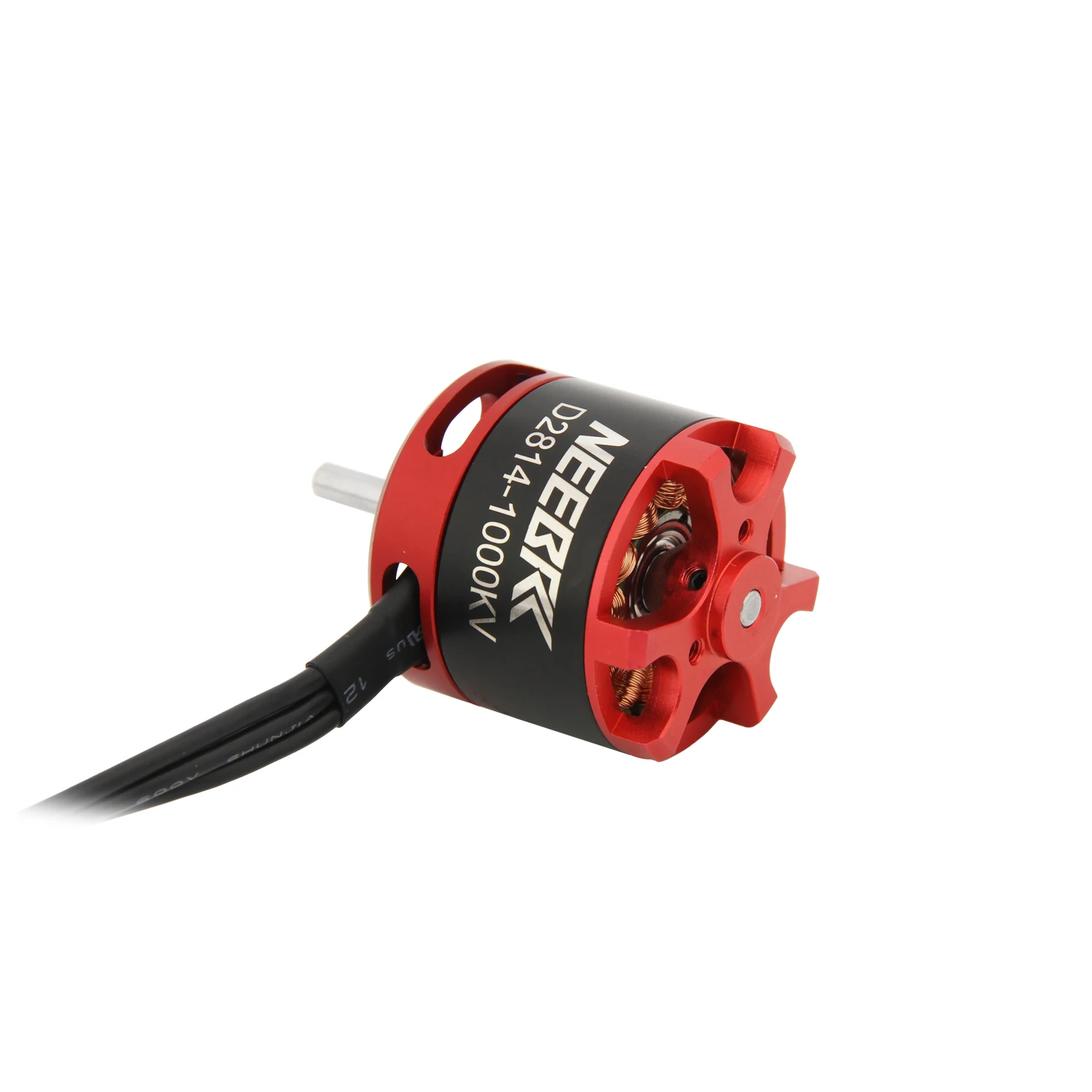

Model: D2814 1000KV Motor
KV(RPM/Volt): 1000KV
Battery (Cell Lipo): 3-4S
Suggested Prop: 12×6/11×7
Length: 82.1mm
Width: 35mm
Shaft Diameter: 6mm
Item Weight: 96g/pcs

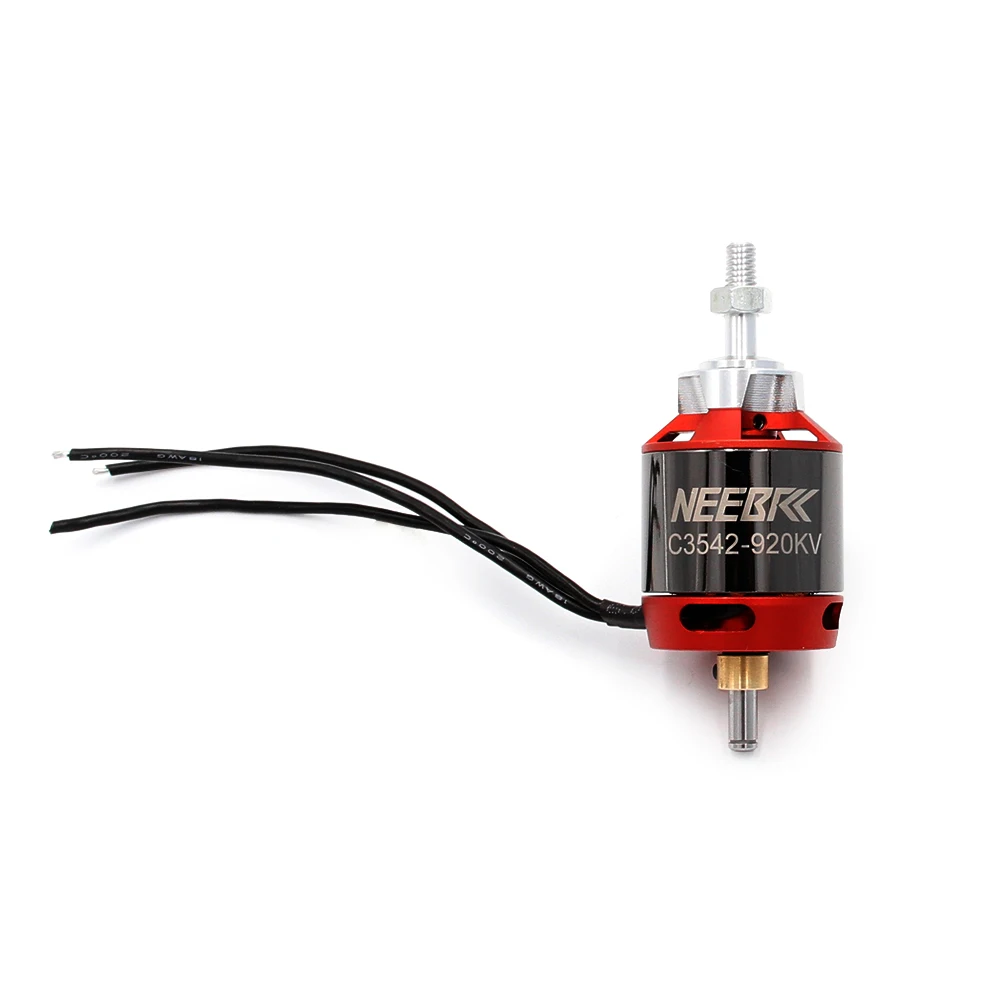

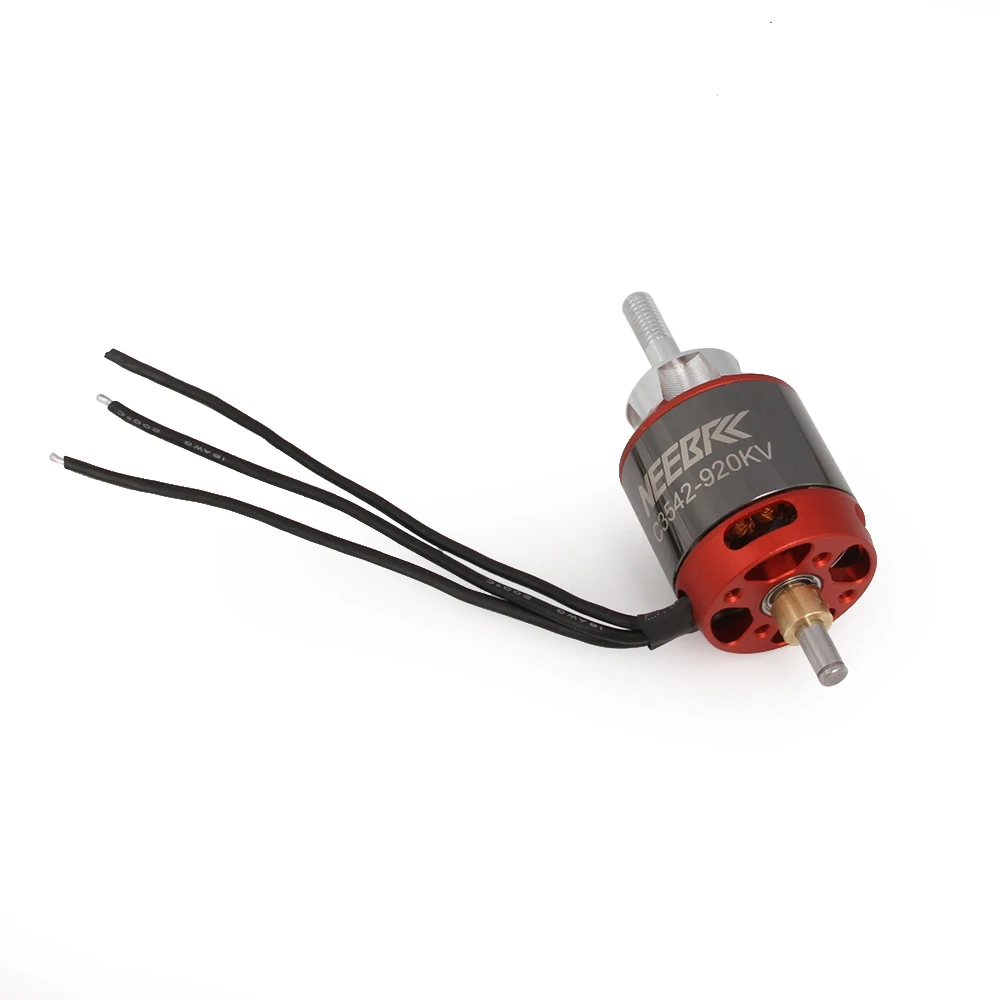

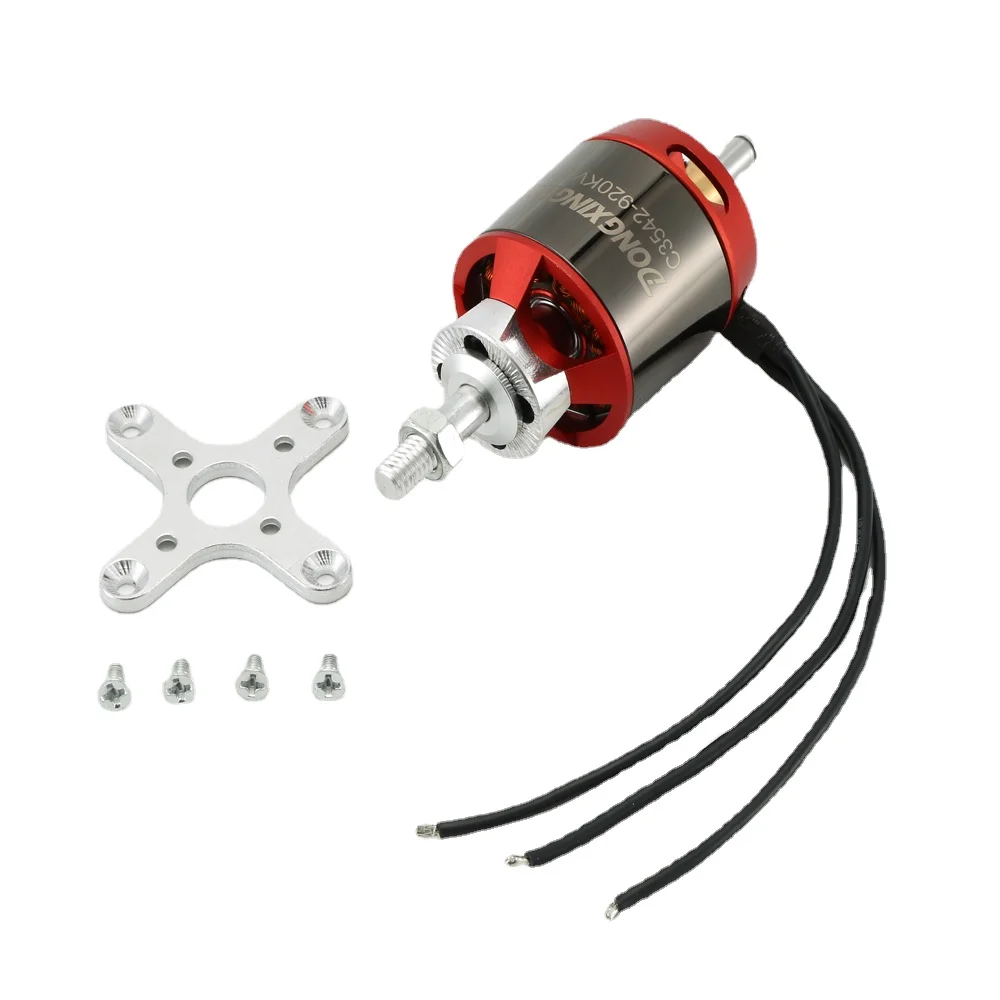

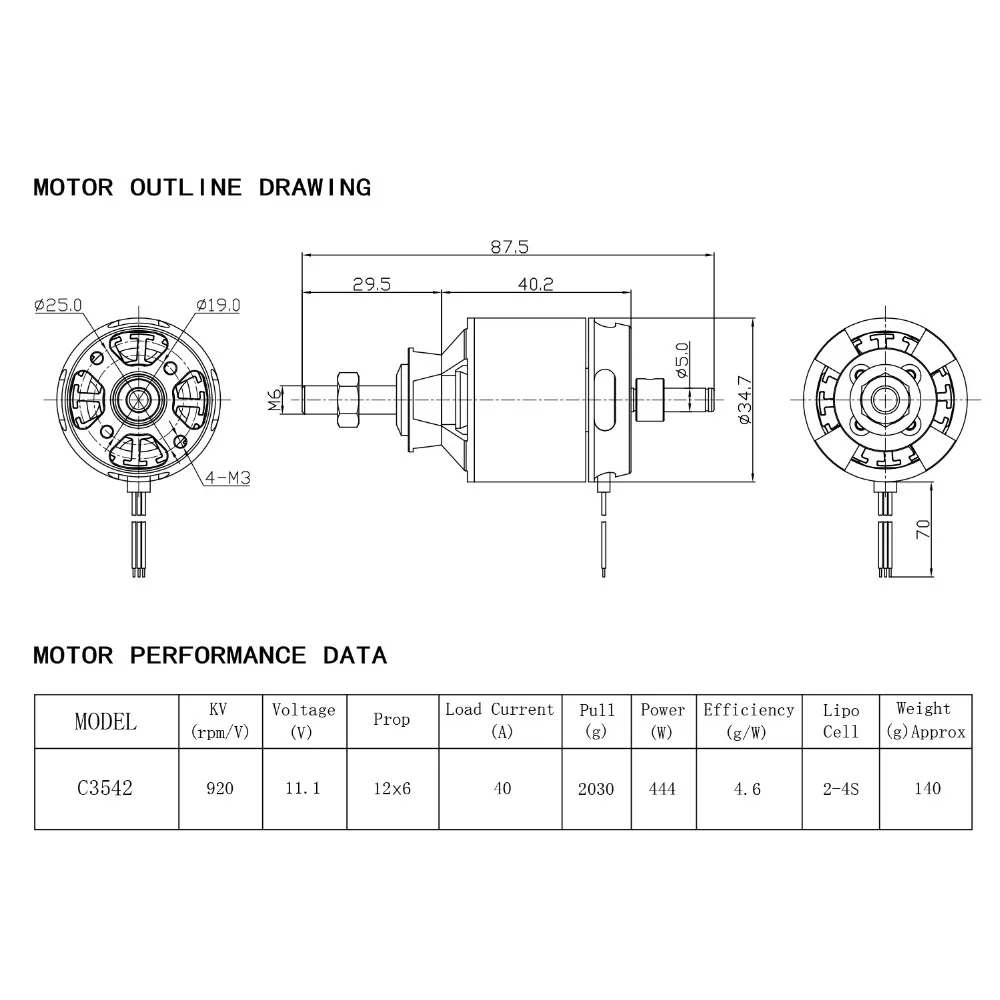

Model: C3542 920KV Motor
KV(RPM/Volt): 920KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 12×6
Length: 87.5mm
Width: 34.7mm
Shaft Diameter: 6mm
Item Weight: 138g/pcs

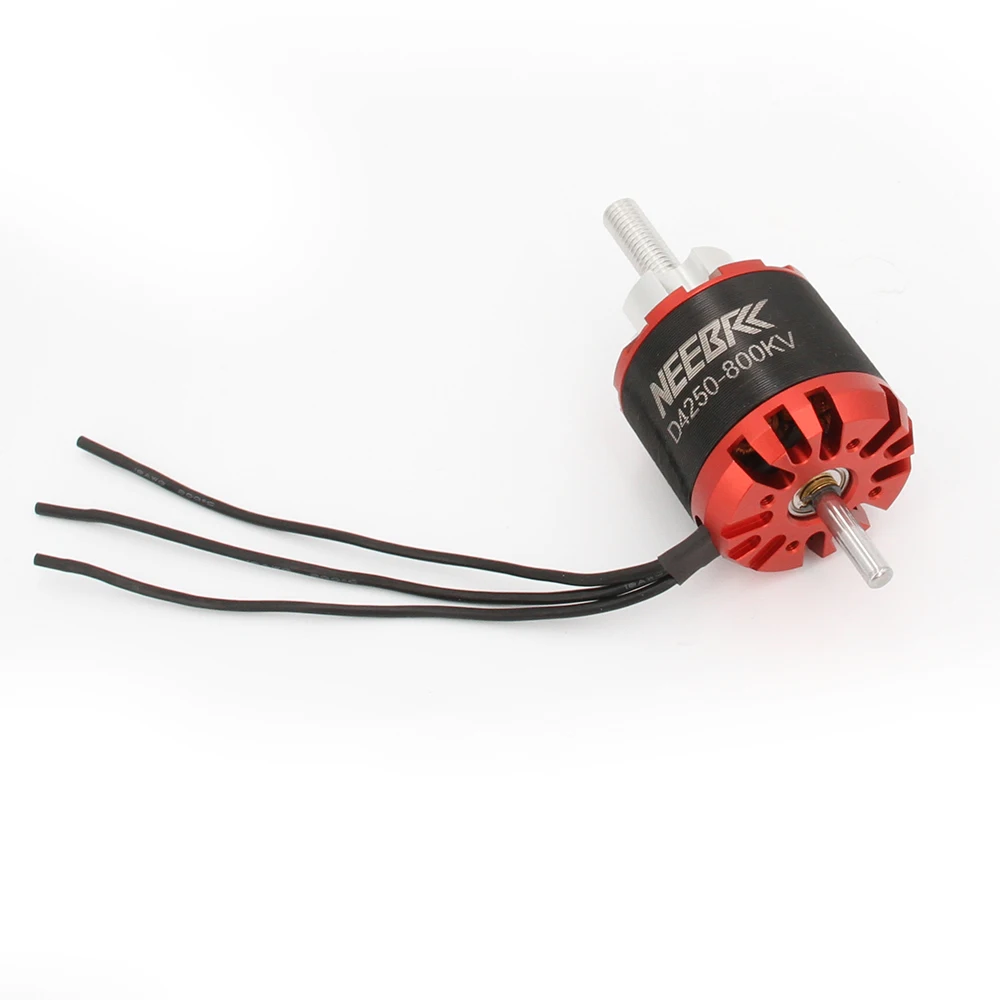

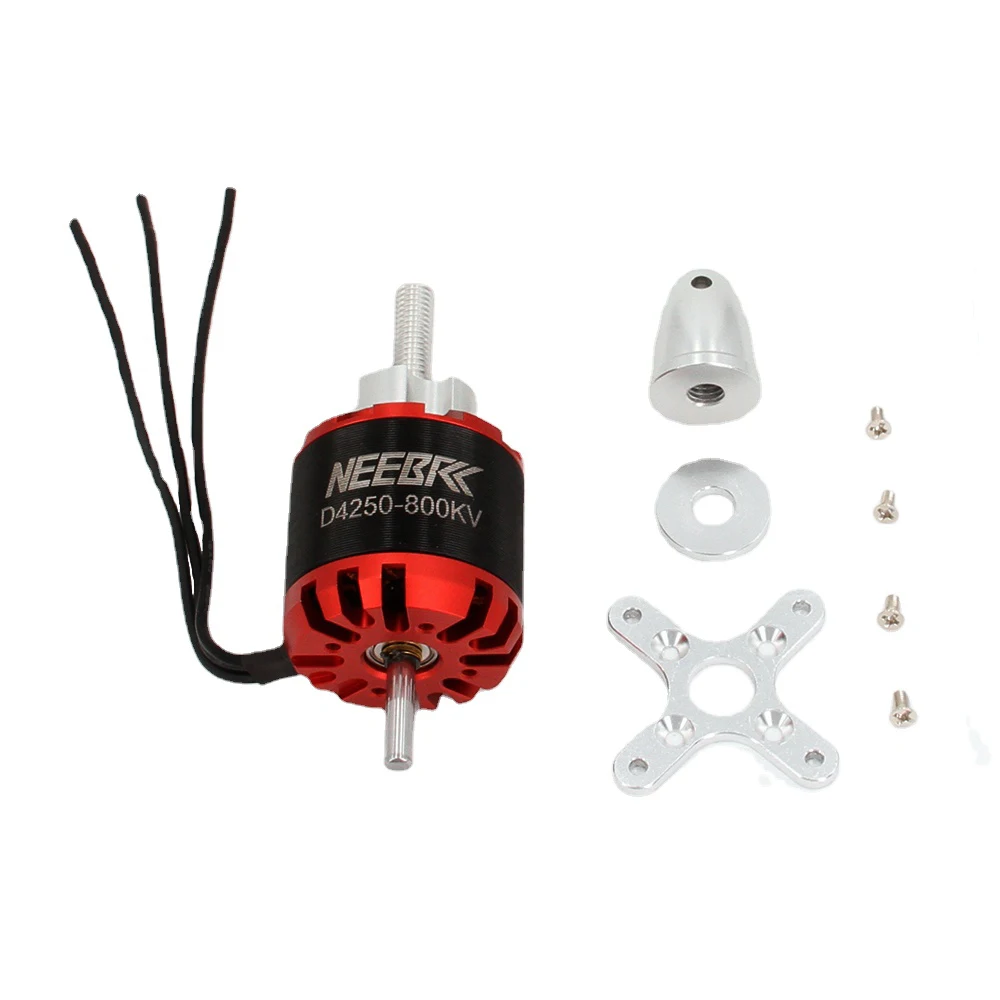

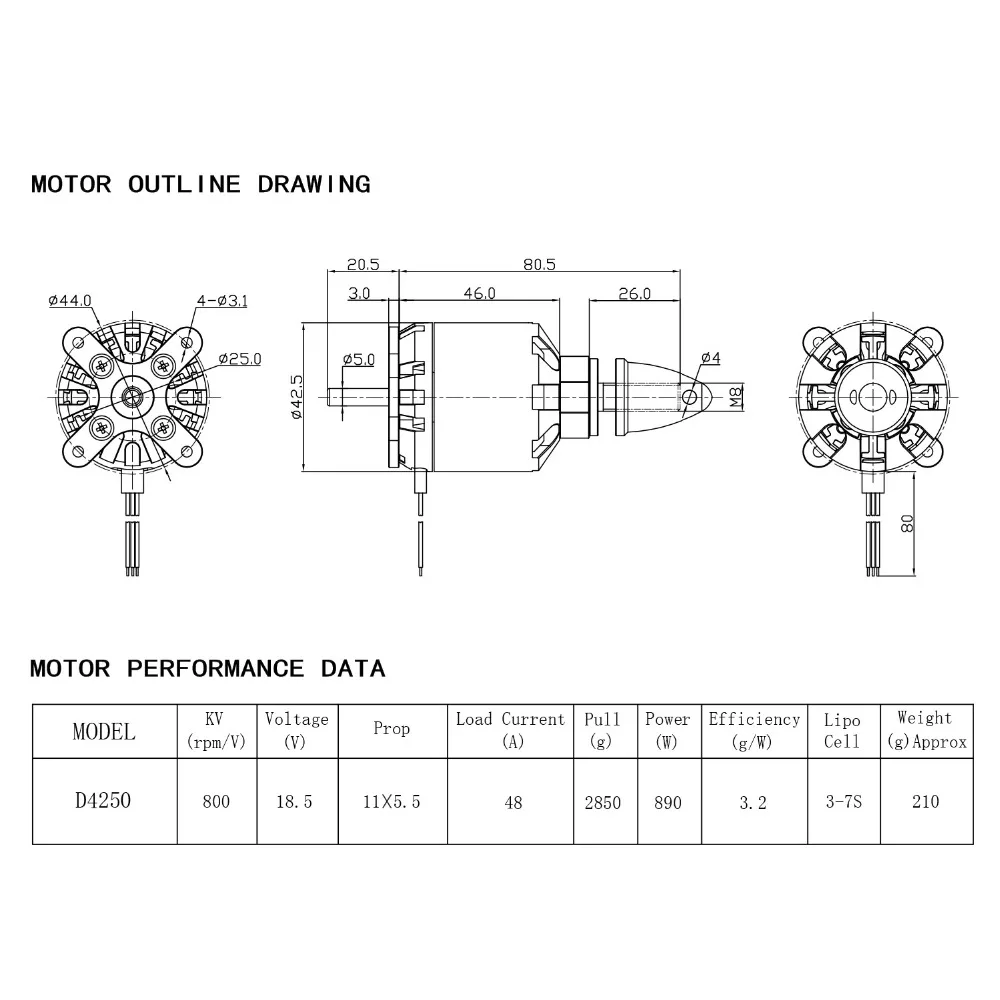

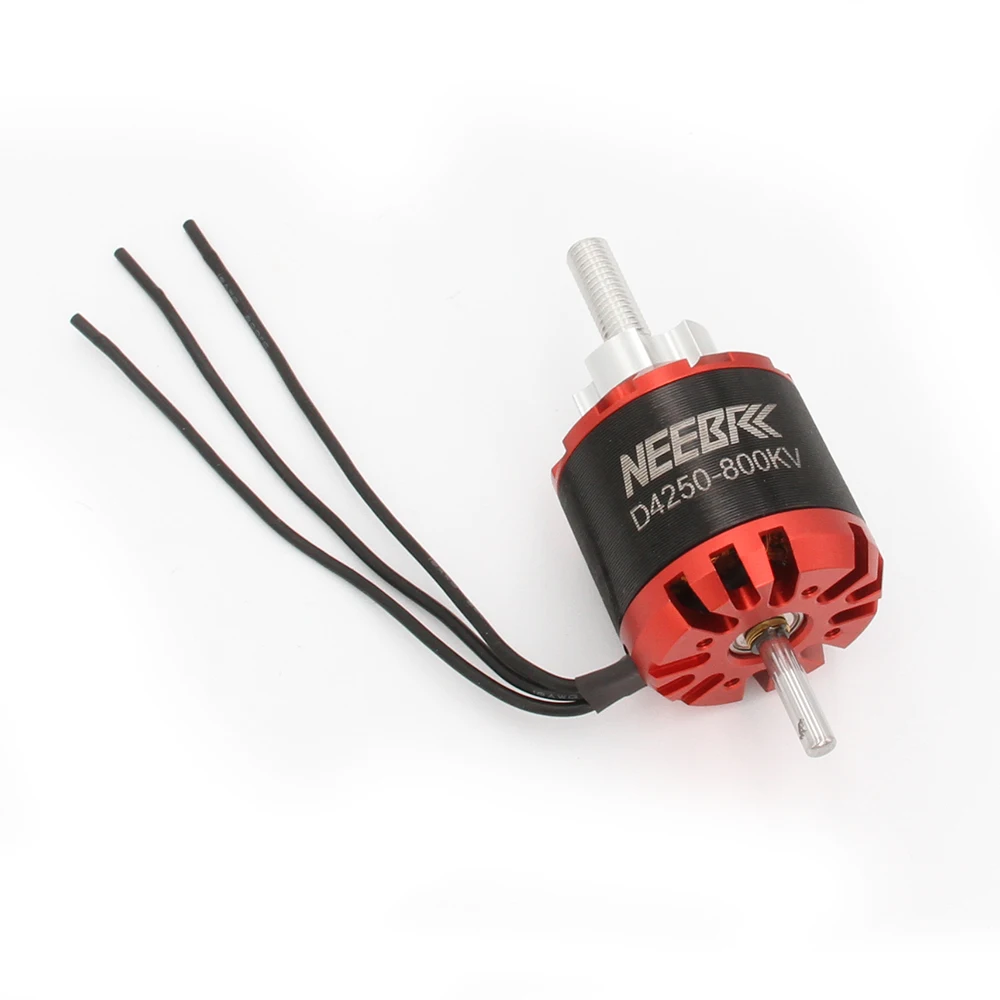

Model: D4250 800KV Motor
KV(RPM/Volt): 800KV
Battery (Cell Lipo): 3-7S
Suggested Prop: 11×5.5
Length: 101mm
Width: 42.5mm
Shaft Diameter: 8mm
Item Weight: 213g/pcs

Model: DX2306 2700KV Motor
KV(RPM/Volt): 2700KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 5045,4045
No. of stator arms: 12
No. of rotor poles: 14
Length: 33.5mm
Width: 28.5mm
Shaft Diameter: 5mm
Item Weight: 33.5g/pcs

Note:
DX2306 2700KV Motor is four motors, 2PCS DX2306 2700KV CW Brushless Motor , 2PCS DX2306 2700KV CCW Brushless Motor
Please allow 1-3mm error due to manual measurement, make sure you do not mind before you bid.
